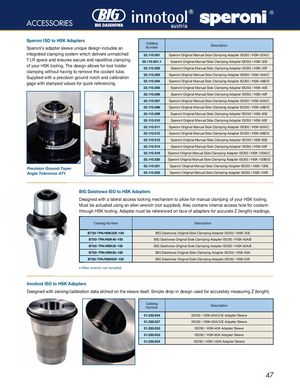

Speroni ISO to HSK Adapters
| Catalog Number | Description |
| 32.110.001 | Speroni Original Manual Side Clamping Adapter ISO50 / HSK-32A/C |
| 32.110.001.1 | Speroni Original Manual Side Clamping Adapter ISO50 / HSK-32E |
| 32.110.002 | Speroni Original Manual Side Clamping Adapter ISO50 / HSK-32F |
| 32.110.003 | Speroni Original Manual Side Clamping Adapter ISO50 / HSK-40A/C |
| 32.110.004 | Speroni Original Manual Side Clamping Adapter ISO50 / HSK-40B/D |
| 32.110.005 | Speroni Original Manual Side Clamping Adapter ISO50 / HSK-40E |
| 32.110.006 | Speroni Original Manual Side Clamping Adapter ISO50 / HSK-40F |
| 32.110.007 | Speroni Original Manual Side Clamping Adapter ISO50 / HSK-50A/C |
| 32.110.008 | Speroni Original Manual Side Clamping Adapter ISO50 / HSK-50B/D |
| 32.110.009 | Speroni Original Manual Side Clamping Adapter ISO50 / HSK-50E |
| 32.110.010 | Speroni Original Manual Side Clamping Adapter ISO50 / HSK-50F |
| 32.110.011 | Speroni Original Manual Side Clamping Adapter ISO50 / HSK-63A/C |
| 32.110.012 | Speroni Original Manual Side Clamping Adapter ISO50 / HSK-63B/D |
| 32.110.013 | Speroni Original Manual Side Clamping Adapter ISO50 / HSK-63E |
| 32.110.014 | Speroni Original Manual Side Clamping Adapter ISO50 / HSK-63F |
| 32.110.019 | Speroni Original Manual Side Clamping Adapter ISO50 / HSK-100A/C |
| 32.110.020 | Speroni Original Manual Side Clamping Adapter ISO50 / HSK-100B/D |
| 32.110.021 | Speroni Original Manual Side Clamping Adapter ISO50 / HSK-100E |
| 32.110.022 | Speroni Original Manual Side Clamping Adapter ISO50 / HSK-100F |
integrated clamping system which delivers unmatched
T.I.R specs and ensures secure and repetitive clamping
of your HSK tooling. The design allows for tool holder
clamping without having to remove the coolant tube.
Supplied with a precision ground notch and calibration
Precision Ground Taper nd
BIG Daishowa ISO to HSK Adapters
Designed with a lateral access locking mechanism to allow for manual clamping of your HSK tooling.
Must be actuated using an allen wrench (not supplied). Also contains internal access hole for coolant-
through HSK tooling. Adapter must be referenced on face of adapters for accurate Z (length) readings.
| Catalog Number | Description |
| BT50-TPA/HSK32E-100 | BIG Daishowa Original Side Clamping Adapter ISO50 / HSK-32E |
| BT50-TPA/HSK40-100 | BIG Daishowa Original Side Clamping Adapter ISO50 / HSK-40A/E |
| BT50-TPA/HSK50-100 | BIG Daishowa Original Side Clamping Adapter ISO50 / HSK-50A/E |
| BT50-TPA/HSK63-100 | BIG Daishowa Original Side Clamping Adapter ISO50 / HSK-63A |
| BT50-TPA/HSK63F-100 | BIG Daishowa Original Side Clamping Adapter ISO50 / HSK-63F |
- Allen wrench not included
Innotool ISO to HSK Adaptersnoto
Designed with zeroing/calibration data etched on the sleeve itself. Simple drop-in design used for accurately measuring Z (length). Designed with zeroing/calibr
| Catalog Number | Description |
| 31.330.024 | ISO50 / HSK-63A/C/E Adapter Sleeve |
| 31.330.027 | ISO50 / HSK-50A/C/E Adapter Sleeve |
| 31.330.052 | ISO50 / HSK-40A Adapter Sleeve |
| 31.330.053 | ISO50 / HSK-80A Adapter Sleeve |
| 31.330.054 | ISO50 / HSK-100A Adapter Sleeve |
