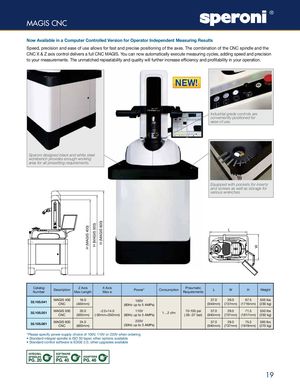

MAGIS CNC Now Available in a Computer Controlled Version for Operator Independent Measuring Results Speed, precision and ease of use allows for fast and precise positioning of the axes. The combination of the CNC spindle and the CNC X & Z axis control delivers a full CNC MAGIS. You can now automatically execute measuring cycles, adding speed and precision to your measurements. The unmatched repeatability and quality will further increase efficiency and profitability in your operation. NEW! Industrial grade controls are conveniently positioned for ease of use. Speroni designed black and white steel workbench provides enough working area for all presetting requirements. Equipped with pockets for inserts and screws as well as storage for various wrenches H (MAGIS 600) H (MAGIS 500) H (MAGIS 400) L W Catalog Z Axis X Axis Pneumatic Description Power* Consumption L W H Weight Number Max Length Max ø Requirements MAGIS 400 16.0 100V 37.0 29.0 67.5 505 lbs 32.105.041 CNC (400mm) (60Hz up to 5 AMPs) (940mm) (737mm) (1716mm) (230 kg) MAGIS 500 20.0 -2.0+14.0 110V 70-100 psi 37.0 29.0 71.5 550 lbs 32.105.051 1…2 cfm CNC (500mm) (-50mm+350mm) (60Hz up to 5 AMPs) (.05-.07 bar) (940mm) (737mm) (1817mm) (250 kg) MAGIS 600 24.0 220V 37.0 29.0 75.5 595 lbs 32.105.061 (50Hz up to 3 AMPs) CNC (600mm) (940mm) (737mm) (1919mm) (270 kg) *Please specify power supply choice of 100V, 110V or 220V when ordering • Standard integral spindle is ISO 50 taper, other options available • Standard control software is EDGE 2.0, other upgrades available INTEGRAL SOFTWARE SPINDLES OPTIONS ADAPTERS PG. 20 PG. 40 PG. 46 19
