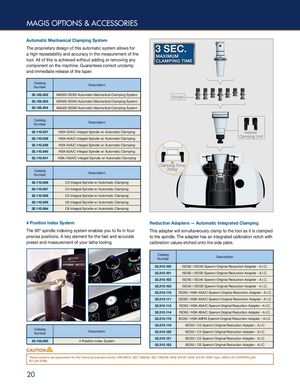

MAGIS OPTIONS & ACCESSORIES

Automatic Mechanical Clamping System

The proprietary design of this automatic system allows for 3 SEC.3 SEC.

a high repeatability and accuracy in the measurement of the

MAXIMUM

tool. All of this is achieved without adding or removing any CLAMPING TIME

component on the machine. Guarantees correct unclamp

and immediate release of the taper.

Catalog NumberDescription
32.105.202MAGIS ISO50 Automatic Mechanical Clamping System
32.105.203MAGIS ISO40 Automatic Mechanical Clamping System
32.105.204MAGIS ISO30 Automatic Mechanical Clamping System
Catalog NumberDescription
32.110.037HSK-32A/C Integral Spindle w/ Automatic Clamping
32.110.038HSK-40A/C Integral Spindle w/ Automatic Clamping
32.110.039HSK-50A/C Integral Spindle w/ Automatic Clamping
32.110.040HSK-63A/C Integral Spindle w/ Automatic Clamping
32.110.041HSK-100A/C Integral Spindle w/ Automatic Clamping

Knobs

Clamping Unit

Clamping Force 200kg

Catalog NumberDescription
32.110.056C3 Integral Spindle w/ Automatic Clamping
32.110.057C4 Integral Spindle w/ Automatic Clamping
32.110.058C5 Integral Spindle w/ Automatic Clamping
32.110.059C6 Integral Spindle w/ Automatic Clamping
32.110.064C8 Integral Spindle w/ Automatic Clamping
4 Position Index SystemReduction Adapters — Automatic Integrated Clamping
The 90º spindle indexing system enables you to fix in fourThis adapter will simultaneously clamp to the tool as it is clamped
precise positions. A key element for the fast and accurateto the spindle. The adapter has an integrated calibration notch with
preset and measurement of your lathe tooling.calibration values etched onto the side plate.
Catalog NumberDescription
32.310.100ISO50 / ISO40 Speroni Original Reduction Adapter - A.I.C.
32.310.101ISO50 / ISO30 Speroni Original Reduction Adapter - A.I.C.
32.310.102ISO50 / ISO45 Speroni Original Reduction Adapter - A.I.C.
32.310.103ISO40 / ISO30 Speroni Original Reduction Adapter - A.I.C.
32.310.110ISO50 / HSK-40A/C Speroni Original Reduction Adapter - A.I.C
32.310.111ISO50 / HSK-50A/C Speroni Original Reduction Adapter - A.I.C
32.310.112ISO50 / HSK-63A/C Speroni Original Reduction Adapter - A.I.C.
32.310.114ISO50 / HSK-80A/C Speroni Original Reduction Adapter - A.I.C.
32.310.116ISO50 / HSK-80FM Speroni Original Reduction Adapter - A.I.C.
32.310.119ISO50 / C3 Speroni Original Reduction Adapter - A.I.C
32.310.120ISO50 / C4 Speroni Original Reduction Adapter - A.I.C
32.310.121ISO50 / C5 Speroni Original Reduction Adapter - A.I.C
32.310.122ISO50 / C6 Speroni Original Reduction Adapter - A.I.C

Catalog Number 32.105.200 4 Position Index System

CAUTION

These systems are guaranteed for the following standard knobs: DIN 69872, ISO 7388/2A, ISO 7388/2B, MAS 403 BT, MAS 403 BT ANSI Type, ANSI 5.50 CATERPILLAR, BT (JIS 6339).
