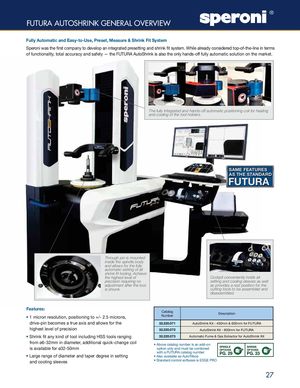

FUTURA AUTOSHRINK GENERAL OVERVIEW
Fully Automatic and Easy-to-Use, Preset, Measure & Shrink Fit System Speroni was the first company to develop an integrated presetting and shrink fit system. While already considered top-of-the-line in terms of functionality, total accuracy and safety — the FUTURA AutoShrink is also the only hands-off fully automatic solution on the market.
The fully Integrated and hands-off automatic positioning coil for heating and cooling of the tool holders.
SAME FEATURES AS THE STANDARD
FUTURAFUTURA
Through pin is mounted inside the spindle body and allows for the fully automatic setting of all shrink fit tooling. Achieve
| the highest level of | Cockpit conveniently holds all |
| precision requiring no | setting and cooling sleeves as well |
| adjustment after the tool | as provides a rest position for the |
| is shrunk. | cutting tools to be assembled and |
disassembled.
Features: Catalog Description
- 1 micron resolution, positioning to +/- 2.5 microns, Number
| drive-pin becomes a true axis and allows for the | 32.220.071 | AutoShrink Kit - 400mm & 600mm for FUTURA | |
| highest level of precision | 32.220.072 | AutoShrink Kit - 800mm for FUTURA | |
| • Shrink fit any kind of tool including HSS tools ranging | 32.220.073 | Automatic Fume & Gas Extractor for AutoShrink Kit |
from ø6-32mm in diameter, additional quick-change coil
- Above catalog number is an add-on
| is available for ø32-50mm | option only and must be combined | SPINDLE | SHRINK |
| OPTIONS | OPTIONS | ||
| with a FUTURA catalog number | PG. 29 | PG. 33 |
- Large range of diameter and taper degree in setting
- Also available as AutoTribos
and cooling sleeves Standard control software is EDGE PRO
