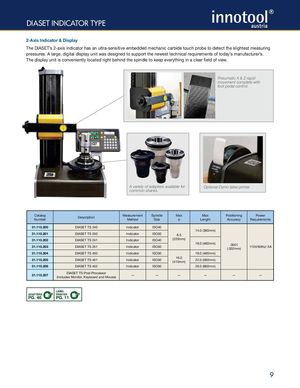

DIASET INDICATOR TYPE
2-Axis Indicator & Display
The DIASET’s 2-axis indicator has an ultra-sensitive embedded mechanic carbide touch probe to detect the slightest measuring pressures. A large, digital display unit was designed to support the newest technical requirements of today’s manufacturer’s. The display unit is conveniently located right behind the spindle to keep everything in a clear field of view.
Pneumatic X & Z rapid
movement complete with
foot pedal control.
A variety of adapters available for Optional Dymo label printer. common shanks.
| Catalog Number | Description | Measurement Method | Spindle Size | Max ø | Max Length | Positioning Accuracy | Power Requirements |
| 31.110.200 | DIASET TS 240 | Indicator | ISO40 | ||||
| 31.110.201 | DIASET TS 250 | Indicator | ISO50 | 8.5 | 14.0 (360mm) | ||
| 31.110.202 | DIASET TS 241 | Indicator | ISO40 | (220mm) | |||
| 31.110.203 | DIASET TS 251 | Indicator | ISO50 | 18.0 (460mm) | .0001 (.002mm) | 110V/60Hz/.5A | |
| 31.110.204 | DIASET TS 450 | Indicator | ISO50 | 18.0 (460mm) | |||
| 31.110.205 | DIASET TS 451 | Indicator | ISO50 | 16.0 (410mm) | 22.0 (560mm) | ||
| 31.110.206 | DIASET TS 452 | Indicator | ISO50 | 26.0 (660mm) | |||
| 31.110.207 | DIASET TS Post Processor (Includes Monitor, Keyboard and Mouse) | — | — | — | — | — | — |
LABEL ADAPTERS PRINTER
