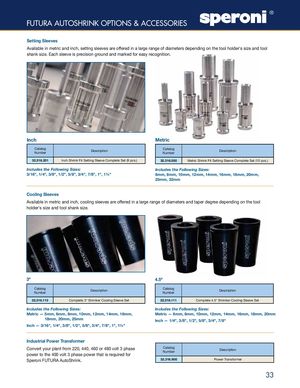

FUTURA AUTOSHRINK OPTIONS & ACCESSORIES

Setting Sleeves Available in metric and inch, setting sleeves are offered in a large range of diameters depending on the tool holder's size and tool ge of diameters depending on the tool holder s size and shank size. Each sleeve is precision ground and marked for easy recognition.ognition.

Inch MetricMetric

Catalog Catalog Description Description Number Number

32.316.201 Inch Shrink Fit Setting Sleeve Complete Set (9 pcs.) 32.316.000 Metric Shrink Fit Setting Sleeve Complete Set (10 pcs.)

Includes the Following Sizes: Includes the Following Sizes: 3/16", 1/4", 3/8", 1/2", 5/8", 3/4", 7/8", 1", 1¼" 6mm, 8mm, 10mm, 12mm, 14mm, 16mm, 18mm, 20mm, 25mm, 32mm

Cooling Sleeves Available in metric and inch, cooling sleeves are offered in a large range of diameters and taper degree depending on the tool range of diameters and taper degree depending on the tool holder's size and tool shank size.

3º 4.5º

Catalog Catalog Description Description Number Number

32.316.110 Complete 3° Shrinker Cooling Sleeve Set 32.316.111 Complete 4.5° Shrinker Cooling Sleeve Set

Includes the Following Sizes: Includes the Following Sizes: Metric — 5mm, 6mm, 8mm, 10mm, 12mm, 14mm, 16mm, Metric — 6mm, 8mm, 10mm, 12mm, 14mm, 16mm, 18mm, 20mm 18mm, 20mm, 25mm Inch — 1/4", 3/8", 1/2", 5/8", 3/4", 7/8"

Inch — 3/16", 1/4", 3/8", 1/2", 5/8", 3/4", 7/8", 1", 1¼"

Industrial Power Transformer

power to the 400 volt 3 phase power that is required for
