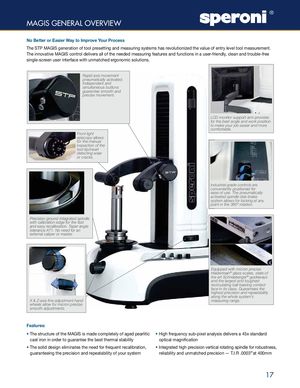

MAGIS GENERAL OVERVIEW

No Better or Easier Way to Improve Your Process The STP MAGIS generation of tool presetting and measuring systems has revolutionized the value of entry level tool measurement. The innovative MAGIS control delivers all of the needed measuring features and functions in a user-friendly, clean and trouble-free single-screen user interface with unmatched ergonomic solutions.

Rapid axis movement pneumatically activated. Independent and simultaneous buttons guarantee smooth and precise movement.

Front light episcopy allows for the manual inspection of the tool tip/insert detecting wear or cracks.

LCD monitor support arm provides for the best angle and work position to make your job easier and more comfortable.

Industrial grade controls are conveniently positioned for ease of use. The pneumatically activated spindle disk brake system allows for locking at any point in the 360º rotation.

Precision ground integrated spindle with calibration edge for the fast and easy recalibration. Taper angle tolerance AT1. No need for an external caliper or master.

X & Z-axis fine adjustment hand wheels allow for micron precise smooth adjustments.

Equipped with micron precise Heidenhain® glass scales, state of the art Schneeberger® guideways and the largest and toughest recirculating ball bearing contact face in its class. Guarantees the highest precision and repeatability along the whole system’s measuring range.

Features:

• The structure of the MAGIS is made completely of aged pearlitic
• High frequency sub-pixel analysis delivers a 45x standard

cast iron in order to guarantee the best thermal stability optical magnification

• The solid design eliminates the need for frequent recalibration,
• Integrated high precision vertical rotating spindle for robustness,

guaranteeing the precision and repeatability of your system reliability and unmatched precision — T.I.R .0003" at 400mm
