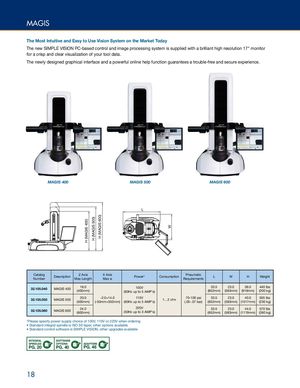

MAGIS The Most Intuitive and Easy to Use Vision System on the Market Today The new SIMPLE VISION PC-based control and image processing system is supplied with a brilliant high resolution 17" monitor for a crisp and clear visualization of your tool data. The newly designed graphical interface and a powerful online help function guarantees a trouble-free and secure experience. H (MAGIS 600) H (MAGIS 500) MAGIS 400 MAGIS 500 H (MAGIS 400) MAGIS 600 L H (MAGIS 600) H (MAGIS 500) H (MAGIS 400) W Catalog Z Axis X Axis Pneumatic Description Power* Consumption L W H Weight Number Max Length Max ø Requirements 16.0 100V 33.5 23.0 36.0 440 lbs 32.105.040 MAGIS 400 (400mm) (60Hz up to 5 AMP's) (852mm) (583mm) (916mm) (200 kg) 20.0 -2.0+14.0 110V 70-100 psi 33.5 23.0 40.0 505 lbs 32.105.050L MAGIS 500 1…2 cfm (500mm) (-50mm+350mm) (60Hz up to 5 AMP's) (.05-.07 bar) (852mm) (583mm) (1017mm) (230 kg) 24.0 220V 33.5 23.0 44.0 570 lbs 32.105.060 MAGIS 600 (50Hz up to 3 AMP's) (600mm) (852mm) (583mm) (1119mm) (260 kg) W *Please specify power supply choice of 100V, 110V or 220V when ordering • Standard integral spindle is ISO 50 taper, other options available • Standard control software is SIMPLE VISION, other upgrades available INTEGRAL SOFTWARE SPINDLES OPTIONS ADAPTERS PG. 20 PG. 40 PG. 46 18
