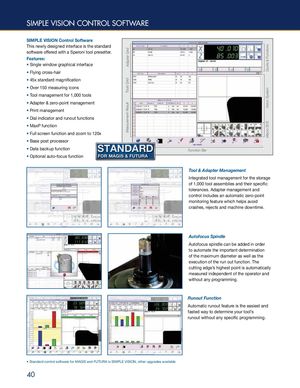

SIMPLE VISION CONTROL SOFTWARE

SIMPLE VISION Control Software This newly designed interface is the standard software offered with a Speroni tool presetter.

Features:

• Single window graphical interface
• Flying cross-hair
• 45x standard magnification
• Over 150 measuring icons
• Tool management for 1,000 tools
• Adapter & zero-point management
• Print management
• Dial indicator and runout functions
• MaxP function
• Full screen function and zoom to 120x
• Base post processor

STANDARDSTANDARD

• Data backup function

Function Bar

• Optional auto-focus function FOR MAGIS & FUTURA

Tool & Adapter Management Integrated tool management for the storage of 1,000 tool assemblies and their specific tolerances. Adapter management and control includes an automatic zero-point monitoring feature which helps avoid crashes, rejects and machine downtime.

Autofocus Spindle Autofocus spindle can be added in order to automate the important determination of the maximum diameter as well as the execution of the run out function. The cutting edge’s highest point is automatically measured independent of the operator and without any programming.

Runout Function Automatic runout feature is the easiest and fasted way to determine your tool’s runout without any specific programming.

• Standard control software for MAGIS and FUTURA is SIMPLE VISION, other upgrades available
