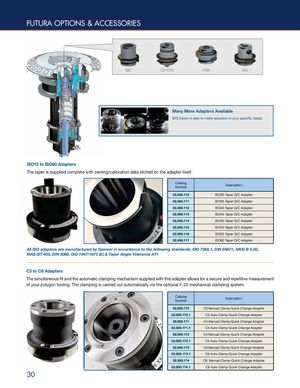

ISO C3-C10 HSK VDI
Many More Adapters Available
BIG Kaiser is able to make adapters to your specific needs.
ISO10 to ISO60 Adapters
The taper is supplied complete with zeroing/calibration data etched on the adapter itself.
Catalog Description Number
| 32.300.110 | ISO30 Taper Q/C Adapter |
| 32.300.111 | ISO35 Taper Q/C Adapter |
| 32.300.112 | ISO40 Taper Q/C Adapter |
| 32.300.113 | ISO45 Taper Q/C Adapter |
| 32.300.114 | ISO50 Taper Q/C Adapter |
| 32.300.115 | ISO20 Taper Q/C Adapter |
| 32.300.116 | ISO25 Taper Q/C Adapter |
| 32.300.117 | ISO60 Taper Q/C Adapter |
All ISO adapters are manufactured by Speroni in accordance to the following standards: ISO 7388.1, DIN 69871, ANSI B 5.50, MAS/BT 403, DIN 2080, ISO 1947/1973 (E) & Taper Angle Tolerance AT1
C3 to C8 Adapters
The simultaneous fit and the automatic clamping mechanism supplied with this adapter allows for a secure and repetitive measurement of your polygon tooling. The clamping is carried out automatically via the optional F-20 mechanical clamping system.
Catalog Description Number
| 32.300.170 | C3 Manual Clamp Quick Change Adapter |
| 32.300.170.1 | C3 Auto Clamp Quick Change Adapter |
| 32.300.171 | C4 Manual Clamp Quick Change Adapter |
| 32.300.171.1 | C4 Auto Clamp Quick Change Adapter |
| 32.300.172 | C5 Manual Clamp Quick Change Adapter |
| 32.300.172.1 | C5 Auto Clamp Quick Change Adapter |
| 32.300.173 | C6 Manual Clamp Quick Change Adapter |
| 32.300.173.1 | C6 Auto Clamp Quick Change Adapter |
| 32.300.174 | C8 Manual Clamp Quick Change Adapter |
| 32.300.174.1 | C8 Auto Clamp Quick Change Adapter |
