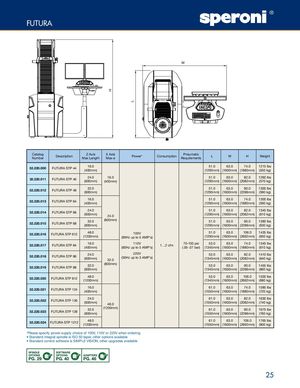

FUTURA
WW
| Catalog Number | Description | Z Axis Max Length | X Axis Max ø | Power | Consumption | Pneumatic Requirements | L | W | H | Weight |
| 32.220.000 | FUTURA STP 44 | 16.0 (400mm) | 51.0 (1295mm) | 63.0 (1600mm) | 74.0 (1880mm) | 1215 lbs (550 kg) | ||||
| 32.220.011 | FUTURA STP 46 | 24.0 (600mm) | 16.0 (400mm) | 51.0 (1295mm) | 63.0 (1600mm) | 82.0 (2082mm) | 1260 lbs (570 kg) | |||
| 32.220.012 | FUTURA STP 48 | 32.0 (800mm) | 51.0 (1295mm) | 63.0 (1600mm) | 90.0 (2286mm) | 1300 lbs (590 kg) | ||||
| 32.220.013 | FUTURA STP 64 | 16.0 (400mm) | 51.0 (1295mm) | 63.0 (1600mm) | 74.0 (1880mm) | 1300 lbs (590 kg) | ||||
| 32.220.014 | FUTURA STP 66 | 24.0 (600mm) | 24.0 | 51.0 (1295mm) | 63.0 (1600mm) | 82.0 (2082mm) | 1345 lbs (610 kg) | |||
| 32.220.015 | FUTURA STP 68 | 32.0 (800mm) | (600mm) | 51.0 (1295mm) | 63.0 (1600mm) | 90.0 (2286mm) | 1390 lbs (630 kg) | |||
| 32.220.016 | FUTURA STP 612 | 48.0 (1200mm) | 100V (60Hz up to 5 AMP's) | 51.0 (1295mm) | 63.0 (1600mm) | 106.0 (2692mm) | 1435 lbs (650 kg) | |||
| 32.220.017 | FUTURA STP 84 | 16.0 (400mm) | 110V (60Hz up to 5 AMP's) | 1…2 cfm | 70-100 psi (.05-.07 bar) | 53.0 (1345mm) | 63.0 (1600mm) | 74.0 (1880mm) | 1345 lbs (610 kg) | |
| 32.220.018 | FUTURA STP 86 | 24.0 (600mm) | 32.0 | 220V (50Hz up to 3 AMP's) | 53.0 (1345mm) | 63.0 (1600mm) | 82.0 (2082mm) | 1410 lbs (640 kg) | ||
| 32.220.019 | FUTURA STP 88 | 32.0 (800mm) | (800mm) | 53.0 (1345mm) | 63.0 (1600mm) | 90.0 (2286mm) | 1455 lbs (660 kg) | |||
| 32.220.020 | FUTURA STP 812 | 48.0 (1200mm) | 53.0 (1345mm) | 63.0 (1600mm) | 106.0 (2692mm) | 1500 lbs (680 kg) | ||||
| 32.220.021 | FUTURA STP 124 | 16.0 (400mm) | 61.0 (1550mm) | 63.0 (1600mm) | 74.0 (1880mm) | 1585 lbs (720 kg) | ||||
| 32.220.022 | FUTURA STP 126 | 24.0 (600mm) | 48.0 | 61.0 (1550mm) | 63.0 (1600mm) | 82.0 (2082mm) | 1630 lbs (740 kg) | |||
| 32.220.023 | FUTURA STP 128 | 32.0 (800mm) | (1200mm) | 61.0 (1550mm) | 63.0 (1600mm) | 90.0 (2286mm) | 1675 lbs (760 kg) | |||
| 32.220.024 | FUTURA STP 1212 | 48.0 (1200mm) | 61.0 (1550mm) | 63.0 (1600mm) | 106.0 (2692mm) | 1765 lbs (800 kg) |
*Please specify power supply choice of 100V, 110V or 220V when ordering
- Standard integral spindle is ISO 50 taper, other options available
- Standard control software is SIMPLE VISION, other upgrades available
SPINDLE SOFTWARE
| OPTIONS | OPTIONS | ADAPTERS |
| PG. 29 | PG. 40 | PG. 46 |
