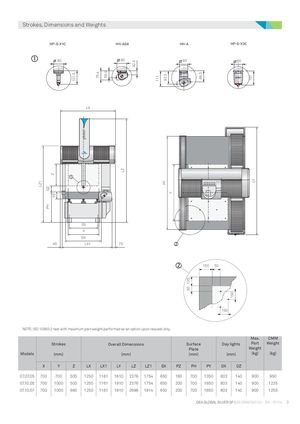

Strokes, Dimensions and Weights HP-S-X1C HH-AS8 HH-A HP-S-X3C 80 80 80 80 32.4 56.4 75.4 68.5 101.5 92.5 101 111 LX LZ Z LY PY LZ1 DZ Y PZ PH SX X DX 40 LX1 75 150 50 50 135 150 150 NOTE: ISO 10360-2 test with maximum part weight performed as an option upon request only. Max. CMM Strokes Overall Dimensions Surface Day lights Part Weight Plate Weight Models (mm) (mm) (mm) (mm) (kg) (kg) X Y Z LX LX1 LY LZ LZ1 SX PZ PH PY DX DZ 07.07.05 700 700 500 1250 1161 1610 2376 1754 650 180 700 1350 803 140 900 950 07.10.05 700 1000 500 1250 1161 1910 2376 1754 650 200 700 1650 803 140 900 1235 07.10.07 700 1000 660 1250 1161 1910 2696 1914 650 200 700 1650 803 140 900 1255 DEA GLOBAL SILVER SF | DS CMM 037/02 - EN - 07/14 3
