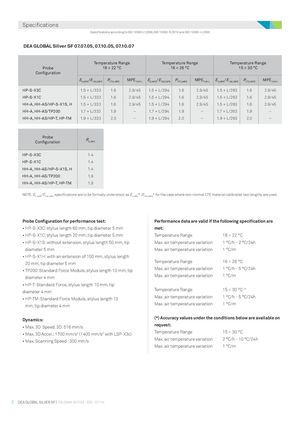

Specifications
Specifications according to ISO 10360-2:2009, ISO 10360-5:2010 and ISO 10360-4:2000 DEA GLOBAL Silver SF 07.07.05, 07.10.05, 07.10.07
| Probe Configuration | Temp 1 | erature Ra 8 ÷ 22 °C | nge | Temp 1 | erature Ra 6 ÷ 26 °C | nge | Temp 1 | erature Ra 5 ÷ 30 °C | nge |
| E0,MPE/E150,MPE | PFTU,MPE | MPETHP/t | E0,MPE/E150,MPE | PFTU,MPE | MPETHP/t | E0,MPE/E150,MPE | PFTU,MPE | MPETHP/t | |
| HP-S-X3C | 1.5 + L/333 | 1.6 | 2.9/45 | 1.5 + L/294 | 1.6 | 2.9/45 | 1.5 + L/263 | 1.6 | 2.9/45 |
| HP-S-X1C | 1.5 + L/333 | 1.6 | 2.9/45 | 1.5 + L/294 | 1.6 | 2.9/45 | 1.5 + L/263 | 1.6 | 2.9/45 |
| HH-A, HH-AS/HP-S-X1S, H | 1.5 + L/333 | 1.6 | 2.9/45 | 1.5 + L/294 | 1.6 | 2.9/45 | 1.5 + L/263 | 1.6 | 2.9/45 |
| HH-A, HH-AS/TP200 | 1.7 + L/333 | 1.9 | – | 1.7 + L/294 | 1.9 | – | 1.7 + L/263 | 1.9 | – |
| HH-A, HH-AS/HP-T, HP-TM | 1.9 + L/333 | 2.0 | – | 1.9 + L/294 | 2.0 | – | 1.9 + L/263 | 2.0 | – |
| Probe Configuration | RO,MPL | ||||||||
| HP-S-X3C | 1.4 | ||||||||
| HP-S-X1C | 1.4 | ||||||||
| HH-A, HH-AS/HP-S-X1S, H | 1.4 | ||||||||
| HH-A, HH-AS/TP200 | 1.9 | ||||||||
| HH-A, HH-AS/HP-T, HP-TM | 1.9 |
NOTE: E /E specifications are to be formally understood as E * /E * for the case where non-normal CTE material calibrated test lengths are used.
0, MPE 150, MPE 0,MPE 150,MPE
Probe Configuration for performance test: Performance data are valid if the following specification are
- HP-S-X3C: stylus length 60 mm, tip diameter 5 mm met:
| • HP-S-X1C: stylus length 20 mm, tip diameter 5 mm | Temperature Range | 18 ÷ 22 °C |
| • HP-S-X1S: without extension, stylus length 50 mm, tip | Max. air temperature variation | 1 °C/h - 2 °C/24h |
| diameter 5 mm | Max. air temperature variation | 1 °C/m |
- HP-S-X1H: with an extension of 100 mm, stylus length
| 20 mm, tip diameter 5 mm | Temperature Range | 16 ÷ 26 °C |
| • TP200: Standard Force Module, stylus length 10 mm, tip | Max. air temperature variation | 1 °C/h - 5 °C/24h |
| diameter 4 mm | Max. air temperature variation | 1 °C/m |
- HP-T: Standard Force, stylus length 10 mm, tip
| diameter 4 mm | Temperature Range | 15 ÷ 30 °C (*) |
| • HP-TM: Standard Force Module, stylus length 10 | Max. air temperature variation | 1 °C/h - 5 °C/24h |
| mm, tip diameter 4 mm | Max. air temperature variation | 1 °C/m |
Dynamics: (*) Accuracy values under the conditions below are available on
- Max. 3D Speed. 3D: 516 mm/s request:
| • Max. 3D Accel.: 1700 mm/s (1400 mm/s with LSP-X3c) | Temperature Range | 15 ÷ 30 °C | ||
| 2 | 2 | |||
| • Max. Scanning Speed : 300 mm/s | Max. air temperature variation | 2 °C/h - 10 °C/24h |
Max. air temperature variation 1 °C/m
