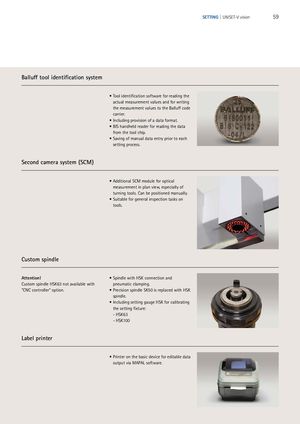

Balluff tool identification system

Second camera system (SCM)

• Tool identification software for reading the actual measurement values and for writing the measurement values to the Balluff code carrier.
• Including provision of a data format.
• BIS handheld reader for reading the data from the tool chip.
• Saving of manual data entry prior to each setting process.
• Additional SCM module for optical measurement in plan view, especially of turning tools. Can be positioned manually.
• Suitable for general inspection tasks on tools.

Custom spindle

Attention! Spindle with HSK connection and Custom spindle HSK63 not available with pneumatic clamping. "CNC controller" option. Precision spindle SK50 is replaced with HSK spindle.

• Including setting gauge HSK for calibrating the setting fixture: - HSK63 - HSK100

Label printer

• Printer on the basic device for editable data output via MAPAL software.
