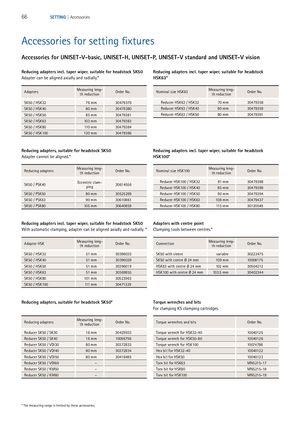

66 SETTING | Accessories
Accessories for setting fixtures
Accessories for UNISET-V-basic, UNISET-H, UNISET-P, UNISET-V standard and UNISET-V vision
Reducing adapters incl. taper wiper, suitable for headstock SK50 Reducing adapters incl. taper wiper, suitable for headstock Adapter can be aligned axially and radially.* HSK63*
| Adapters | Measuring leng- th reduction | Order No. |
| SK50 / HSK32 | 76 mm | 30479379 |
| SK50 / HSK40 | 80 mm | 30479380 |
| SK50 / HSK50 | 85 mm | 30479381 |
| SK50 / HSK63 | 103 mm | 30479383 |
| SK50 / HSK80 | 110 mm | 30479384 |
| SK50 / HSK100 | 130 mm | 30479386 |
| Nominal size HSK63 | Measuring leng- th reduction | Order No. |
| Reducer HSK63 / HSK32 | 70 mm | 30479358 |
| Reducer HSK63 / HSK40 | 80 mm | 30479359 |
| Reducer HSK63 / HSK50 | 80 mm | 30479361 |
Reducing adapters, suitable for headstock SK50 Reducing adapters incl. taper wiper, suitable for headstock Adapter cannot be aligned.* HSK100*
| Reducing adapters | Measuring leng- th reduction | Order No. |
| SK50 / PSK40 | Eccentric clam- ping | 30614556 |
| SK50 / PSK50 | 80 mm | 30525299 |
| SK50 / PSK63 | 90 mm | 30610883 |
| SK50 / PSK80 | 105 mm | 30640859 |
| Nominal size HSK100 | Measuring leng- th reduction | Order No. |
| Reducer HSK100 / HSK32 | 81 mm | 30479388 |
| Reducer HSK100 / HSK40 | 85 mm | 30479389 |
| Reducer HSK100 / HSK50 | 90 mm | 30479394 |
| Reducer HSK100 / HSK63 | 108 mm | 30479437 |
| Reducer HSK100 / HSK80 | 115 mm | 30120549 |
Reducing adapters incl. taper wiper, suitable for headstock SK50 Adapters with centre point With automatic clamping, adapter can be aligned axially and radially. * Clamping tools between centres.*
| Adapter HSK | Measuring leng- th reduction | Order No. |
| SK50 / HSK32 | 51 mm | 30396033 |
| SK50 / HSK40 | 51 mm | 30396029 |
| SK50 / HSK50 | 51 mm | 30396019 |
| SK50 / HSK63 | 51 mm | 30369855 |
| SK50 / HSK80 | 101 mm | 30523963 |
| SK50 / HSK100 | 111 mm | 30471329 |
| Connection | Measuring leng- th reduction | Order No. |
| SK50 with sleeve | variable | 30222475 |
| SK50 with centre Ø 24 mm | 109 mm | 10008175 |
| HSK63 with centre Ø 24 mm | 102 mm | 30504212 |
| HSK100 with centre Ø 24 mm | 103.5 mm | 30402344 |
Reducing adapters, suitable for headstock SK50* Torque wrenches and bits For clamping KS clamping cartridges.
| Reducing adapters | Measuring leng- th reduction | Order No. |
| Reducer SK50 / SK30 | 16 mm | 30429933 |
| Reducer SK50 / SK40 | 16 mm | 10096796 |
| Reducer SK50 / VDI30 | 80 mm | 30372833 |
| Reducer SK50 / VDI40 | 80 mm | 30372834 |
| Reducer SK50 / VDI50 | 80 mm | 30416485 |
| Reducer SK50 / VDI60 | – | |
| Reducer SK50 / KM50 | – | |
| Reducer SK50 / KM60 | – | |
| Torque wrenches and bits | Order No. |
| Torque wrench for HSK32-40 | 10040125 |
| Torque wrench for HSK50-80 | 10040126 |
| Torque wrench for HSK100 | 10074788 |
| Hex bit for HSK32-40 | 10040122 |
| Hex bit for HSK50 | 10040123 |
| Torx bit for HSK63 | MN5215-17 |
| Torx bit for HSK80 | MN5215-18 |
| Torx bit for HSK100 | MN5215-19 |
* The measuring range is limited by these accessories.
