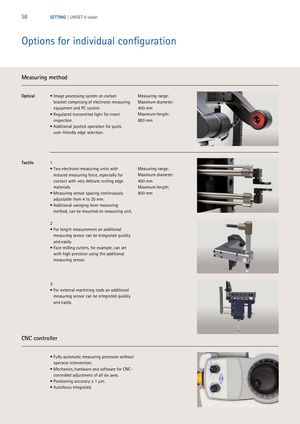

Options for individual configuration
Measuring method
| Optical | • Image processing system on carbon | Measuring range: |
| bracket comprising of electronic measuring | Maximum diameter: | |
| equipment and PC system. | 400 mm |
- Regulated transmitted light for insert Maximum length: inspection. 800 mm
- Additional joystick operation for quick, user-friendly edge selection.
Tactile 1
- Two electronic measuring units with Measuring range: reduced measuring force, especially for Maximum diameter: contact with very delicate cutting edge 400 mm materials. Maximum length:
- Measuring sensor spacing continuously 800 mm adjustable from 4 to 20 mm.
- Additional swinging lever measuring method, can be mounted on measuring unit.
2
- For length measurement an additional measuring sensor can be integrated quickly and easily.
- Face milling cutters, for example, can set with high precision using the additional measuring sensor.
3
- For external machining tools an additional measuring sensor can be integrated quickly and easily.
CNC controller
- Fully automatic measuring processes without operator intervention.
- Mechanics, hardware and software for CNCcontrolled adjustment of all six axes.
- Positioning accuracy ± 1 µm.
- Autofocus integrated.
