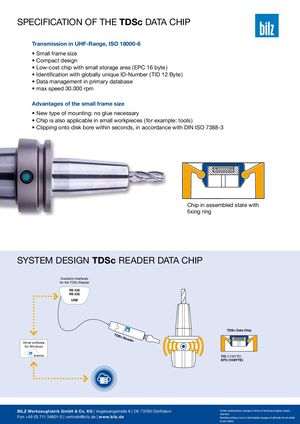

SPECIFICATION OF THE TDSc DATA CHIP

Transmission in UHF-Range, ISO 18000-6

  • Small frame size
  • Compact design
  • Low-cost chip with small storage area ( EPC 16 byte )
  • Identification with globally unique ID-Number ( TID 12 Byte )
  • Data management in primary database
  • max speed 30.000 rpm

Advantages of the small frame size

  • New type of mounting: no glue necessary
  • Chip is also applicable in small workpieces ( for example: tools )
  • Clipping onto disk bore within seconds, in accordance with DIN ISO 7388-3

Chip in assembled state with

fixing ring

SYSTEM DESIGN TDSc READER DATA CHIP

Available interfaces for the TDSc Reader RS 422 RS 232 USB

Driver software for Windows

TDSc Reader

TDSc Data Chip

TID (12 BYTE ) EPC (16 BYTE )

BILZ Werkzeugfabrik GmbH & Co. KG | Vogelsangstraße 8 | DE 73760 Ostfildern Further development; changes in terms of technical progress remain

12 BTC reserved.
