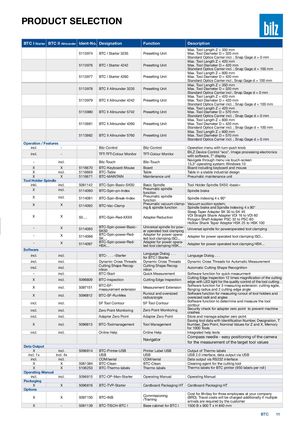

| BTC IStarter B | TC IIAllround | er Ident-No | . Designation | Function | Description |
| | 5113974 | BTC I Starter 3235 | Presetting Unit | Max. Tool Length Z = 350 mm Max. Tool Diameter D = 320 mm Standard Optics Carrier incl. ; Snap Gage d=0 mm |
| | 5113976 | BTC I Starter 4242 | Presetting Unit | Max. Tool Length Z = 420 mm Max. Tool Diameter D = 420 mm Standard Optics Carrier incl. ; Snap Gage d=100 mm |
| | 5113977 | BTC I Starter 4260 | Presetting Unit | Max. Tool Length Z = 600 mm Max. Tool Diameter D = 420 mm Standard Optics Carrier incl; Snap Gage d= 100mm |
| | 5113978 | BTC II Allrounder 3235 | Presetting Unit | Max. Tool Length Z = 350 mm Max. Tool Diameter D = 320 mm Standard Optics Carrier incl ; Snap Gage d=0 mm |
| | 5113979 | BTC II Allrounder 4242 | Presetting Unit | Max. Tool Length Z = 420 mm Max. Tool Diameter D = 420 mm Standard Optics Carrier incl. ; Snap Gage d=100 mm |
| | 5113980 | BTC II Allrounder 5742 | Presetting Unit | Max. Tool Length Z = 420 mm Max. Tool Diameter D = 570 mm Stdd Oti Ci il S G d0 |
| | | | | anar pcs arrer nc. ; nap age=mm MTlLhZ 600 |
| | 5113981 | BTC II Allrounder 4260 | Presetting Unit | ax. oo engt = mm Max. Tool Diameter D = 420 mm Standard Optics Carrier incl. ; Snap Gage d=100 mm |
| | 5113982 | BTC II Allrounder 5760 | Presetting Unit | Max. Tool Length Z = 600 mm Max. Tool Diameter D = 570 mm |
| Operation / Fea | tures | | | | Standard Optics Carrier incl. ; Snap Gage d=0 mm |
| incl. | - | | Bilz-Control | Bilz-Control | Operation menu with turn-push knob |
| incl. | - | | TFT-TFT-Colour Monitor | TFT-Colour Monitor | BILZ Device Control "eco", Image processing electronics with software,7" display |
| - | incl. | | Bilz-Touch | Bilz-Touch | Navigate through menu via touch-screen 133"operating system: Windows 10 |
| X X | X incl. | 5116670 5116669 | BTC-Keyboard-Mouse BTC-Table | Board Table | , Board including keyboard and mouse Table in a stable industrial design |
| X Tool Holder Spi | X ndle | 5116671 | BTC-MAINTAIN | Maintenance unit | Pneumatic maintenance unit |
| inkl. | incl. | 5081142 | BTC-Spin-Basic-SK50 | Basic Spindle | Tool Holder Spindle SK50»basic« |
| X | incl. | 5114090 | BTC-Spin-pn-Index | Pneumatic spindle function | Spindle brake |
| X | incl. | 5114091 | BTC-Spin-Break-Index | Pneumatic spindle function | Spindle indexing 4 x 90° |
| X | X | 5114092 | BTC-Vac-Clamp | Pneumatic vacuum clamp- ing & spindle function | Vacuum suction system, Spindle brake and Spindle indexing 4 x 90° St T Adt SK 30 t SK 45 |
| X | X | 50…. | BTC-Spin-Red-XXXX | Adapter Reduction | eep aper aper o VDI Straight Shank Adapter VDI 16 to VDI 60 Polygon Shaft Adapter PSC 32 to PSC 80 Hollow Shank Taper Adapter HSK 25 to HSK 100 |
| - | X | 5114095 | BTC-Spin-power-Basic- SK50 | Universal spindle for pow- er operated tool clamping | Universal spindle for poweroperated tool clamping |
| - | X | 5114096 | BTC-Spin-power-Red- SK… | Adapter for power opera- ted tool clamping ISO... | Adapter for power operated tool clamping ISO... |
| - | X | 5114097 | BTC-Spin-power-Red- | Adapter for power opera- | Adapter for power operated tool clamping HSK... |
| | | HSK… | ted tool clamping HSK... | |
| Software incl | incl | | BTC- -Starter | Language Dialog . . . | Lanuae Dialo |
| . incl. | . incl. | | . . . Dynamic Cross Threads | for BTC I Starter Dynamic Cross Threads | gg g . . . Dynamic Cross Threads for Automatic Measurement |
| incl. | incl. | | Cutting Shape Recog- nition | Cutting Shape Recog- nition | Automatic Cutting Shape Recognition |
| - | incl. | | BTC-Start | Quick Measurement | Software function forquick measurment i |
| X | incl. | 5096809 | BTC-Inspection | Cutting Edge Inspection | Cutting Edge Inspection 12 times magnification of the cutting edge with LED light for the quality control of the tool cutting |
| X | incl. | 5097151 | BTC-SF- measurement extension | Measurement Extension | Software function for 3 measuring extension: cutting egde, flanging radius and 2 cutting edge angle |
| X | incl. | 5096812 | BTC-SF-RunMes | Runout and oversized radius/angle | Software function for measuring runout of tool holders and oversized radii and angles |
| incl. | incl. | | SF Tool Contour | SF Tool Contour | Software function to determine and measure the tool contour |
| incl. | incl. | | Zero Point Monitoring | Zero Point Monitoring | Security check for adapter zero point to prevent machine crashes |
| incl. | incl. | | Adapter Zero Point | Adapter Zero Point | Store and manage adapter zero point i |
| X | incl. | 5096813 | BTC-Toolmanagement | Tool Management | Saving tool data with Identification Number, Designation, T Number, Zero Point, Nominal Values for Z and X, Memory for 1000 Tools |
| incl. | incl. | | Online Help | Online Help | Integrated help texts |
| | | | Navigator | Compass needle - easy positioning of the camera |
| Data Output | | | | | for the measurement of the target tool values |
| X incl 1x | incl. incl 4x | 5096814 | BTC-Printer-USB USB | Printer Label USB USB | Output of Thermo labels USB 20 interface data outut via USB |
| . incl. | . incl. | | COM/serial | COM/serial | . , p Data output via RS232 interface |
| X X Operating Man | X X al | 5081384 5106253 | BTC-Clean BTC-Thermo-labels | BTC-Clean Thermolabels | Cleaning agent for the cutting tool Thermo labels for BTCprinter(950 labelsper roll) |
| incl. Packain | incl. | 5096815 | BTC-OP-Man-Starter | Operating Manual | Operating Manual |
| gg X Options | X | 5096816 | BTC-TVP-Starter | Cardboard Packaging HT | Cardboard Packaging HT |
| | | | Commissioning | Cost for 8h/day for three employees at your company |
| X | X | 5097150 | BTC-INB | /Training | (BRD). Travel costs will be charged additionally if multiple |
| X | - | 5081139 | BTC-TISCH-BTC I | Base cabinet for BTC I | arrivals are required by the customer 1500 B x 900 T x H 840 mm |
