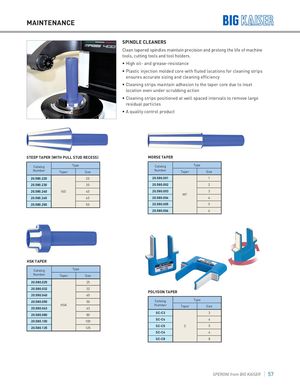

SPINDLE CLEANERS

Clean tapered spindles maintain precision and prolong the life of machine

tools, cutting tools and tool holders.

  • High oil- and grease-resistance
  • Plastic injection molded core with fluted locations for cleaning strips

ensures accurate sizing and cleaning efficiency

  • Cleaning strips maintain adhesion to the taper core due to inset

location even under scrubbing action

  • Cleaning strips positioned at well spaced intervals to remove large

residual particles

  • A quality control product

STEEP TAPER (WITH PULL STUD RECESS) MORSE TAPER

Catalog Type Catalog Type

NumberTaperSizeNumberTaperSize
20.580.2202020.580.0011
20.580.2303020.580.0022
20.580.240ISO4020.580.0033
MT
20.580.2454520.580.0044
20.580.2505020.580.0055

20.580.006 6

HSK TAPER

CatalogType
NumberTaper Size
20.580.02525
20.580.03232
20.580.04040
20.580.050HSK 50
20.580.06363
20.580.08080
20.580.100100
20.580.125125

POLYGON TAPER

CatalogType
NumberTaper Size
SC-C33
SC-C44
SC-C5C 5
SC-C66
SC-C88
