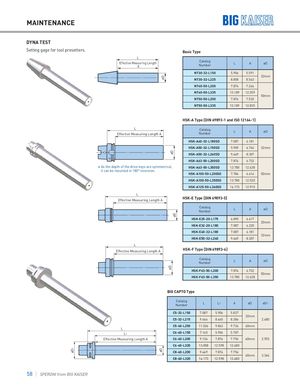

DYNA TEST
Setting gage for tool presetters. Basic Type
L Effective Measuring Length Catalog
| L | A | øD | |
| A | Number | ||
| NT30-32-L150 | 5.906 | 5.591 | |
| 32mm | |||
| NT30-32-L225 | 8.858 | 8.543 | |
| NT40-50-L200 | 7.874 | 7.244 | |
| NT40-50-L335 | 13.189 | 12.559 | |
| 50mm | |||
| NT50-50-L200 | 7.874 | 7.520 | |
| NT50-50-L335 | 13.189 | 12.835 |
HSK-A Type [DIN 69893-1 and ISO 12164-1]
L Catalog
| L | A | øD | |
| Effective Measuring Length A | Number | ||
| HSK-A40-32-L180SD | 7.087 | 6.181 | |
| HSK-A50-32-L150SD | 5.905 | 4.764 | 32mm |
| HSK-A50-32-L240SD | 9.449 | 8.307 | |
| HSK-A63-50-L200SD | 7.874 | 6.732 | |
| • As the depth of the drive keys are symmetrical, HSK-A63-50-L350SD | 13.780 | 12.638 | |
| it can be mounted in 180° inversion. | |||
| HSK-A100-50-L200SD | 7.784 | 6.614 | 50mm |
| HSK-A100-50-L350SD | 13.780 | 12.520 | |
| HSK-A125-50-L360SD | 14.173 | 12.910 | |
| L | |||
| HSK-E Type [DIN 69893-5] | |||
| Effective Measuring Length A | |||
| Catalog | |||
| L | A | øD | |
| Number | |||
| HSK-E25-20-L175 | 6.890 | 6.417 | |
| 20mm | |||
| HSK-E32-20-L180 | 7.087 | 6.220 | |
| HSK-E40-32-L180 | 7.087 | 6.181 | |
| 32mm | |||
| HSK-E50-32-L240 | 9.449 | 8.307 | |
| L | |||
| HSK-F Type [DIN 69893-6] Effective Measuring Length A | |||
| Catalog | |||
| L | A | øD | |
| Number | |||
| HSK-F63-50-L200 | 7.874 | 6.732 | |
| 50mm | |||
| HSK-F63-50-L350 | 13.780 | 12.638 |
BIG CAPTO Type
Catalog
| L | L1 | A | øD | øD1 | |
| Number | |||||
| C5-32-L150 | 7.087 | 5.906 | 5.827 | ||
| 32mm | |||||
| C5-32-L215 | 9.646 | 8.465 | 8.386 | 2.480 | |
| C5-40-L250 | 11.024 | 9.843 | 9.724 | 40mm | |
| L | |||||
| L C6-40-L150 | 7.165 | 5.906 | 5.787 | ||
| 1 | |||||
| Effective Measuring Length A C6-40-L200 | 9.134 | 7.874 | 7.756 | 40mm | 2.953 |
| C6-40-L320 | 13.858 | 12.598 | 12.480 | ||
| C8-40-L200 | 9.449 | 7.874 | 7.756 | ||
| 40mm | 3.346 | ||||
| C8-40-L320 | 14.173 | 12.598 | 12.480 |
