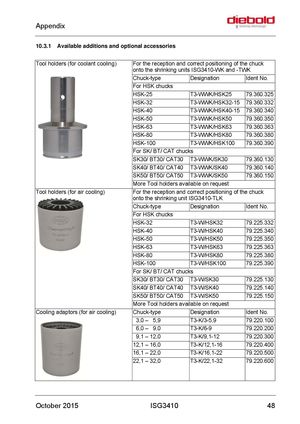

10.3.1 Available additions and optional accessories

Tool holders (for coolant cooling)	For the reception and	correct positioning of t	he chuck
	onto the shrinking unit	s ISG3410-WK and -T	WK
	Chuck-type	Designation	Ident No.
	For HSK chucks
	HSK-25	T3-WWK/HSK25	79.360.325
	HSK-32	T3-WWK/HSK32-15	79.360.332
	HSK-40	T3-WWK/HSK40-15	79.360.340
	HSK-50	T3-WWK/HSK50	79.360.350
	HSK-63	T3-WWK/HSK63	79.360.363
	HSK-80	T3-WWK/HSK80	79.360.380
	HSK-100	T3-WWK/HSK100	79.360.390
	For SK/ BT/ CAT chuc	ks
	SK30/ BT30/ CAT30	T3-WWK/SK30	79.360.130
	SK40/ BT40/ CAT40	T3-WWK/SK40	79.360.140
	SK50/ BT50/ CAT50	T3-WWK/SK50	79.360.150
	More Tool holders ava	ilable on request
Tool holders (for air cooling)	For the reception and onto the shrinking unit	correct positioning of t ISG3410-TLK	he chuck
	Chuck-type	Designation	Ident No.
	For HSK chucks
	HSK-32	T3-W/HSK32	79.225.332
	HSK-40	T3-W/HSK40	79.225.340
	HSK-50	T3-W/HSK50	79.225.350
	HSK-63	T3-W/HSK63	79.225.363
	HSK-80	T3-W/HSK80	79.225.380
	HSK-100	T3-W/HSK100	79.225.390
	For SK/ BT/ CAT chuc	ks
	SK30/ BT30/ CAT30	T3-W/SK30	79.225.130
	SK40/ BT40/ CAT40	T3-W/SK40	79.225.140
	SK50/ BT50/ CAT50	T3-W/SK50	79.225.150
	More Tool holders ava	ilable on request
Cooling adaptors (for air cooling)	Chuck-type	Designation	Ident No.
	3,0 – 5,9	T3-K/3-5,9	79.220.100
	6,0 – 9,0	T3-K/6-9	79.220.200
	9,1 – 12,0	T3-K/9,1-12	79.220.300
	12,1 – 16,0	T3-K/12,1-16	79.220.400
	16,1 – 22,0	T3-K/16,1-22	79.220.500
	22,1 – 32,0	T3-K/22,1-32	79.220.600
