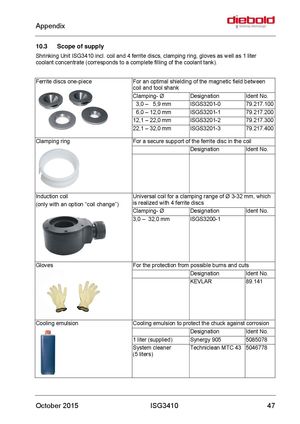

10.3 Scope of supply Shrinking Unit ISG3410 incl. coil and 4 ferrite discs, clamping ring, gloves as well as 1 liter coolant concentrate (corresponds to a complete filling of the coolant tank).
| Ferrite discs one-piece | For an optimal shieldi coil and tool shank | ng of the magnetic field | between |
| Clamping- Ø | Designation | Ident No. | |
| 3,0 – 5,9 mm | ISGS3201-0 | 79.217.100 | |
| 6,0 – 12,0 mm | ISGS3201-1 | 79.217.200 | |
| 12,1 – 22,0 mm | ISGS3201-2 | 79.217.300 | |
| 22,1 – 32,0 mm | ISGS3201-3 | 79.217.400 | |
| Clamping ring | For a secure support | of the ferrite disc in the | coil |
| Induction coil (only with an option “coil change”) | Universal coil for a cl is realized with 4 ferri | Designation amping range of Ø 3-32 te discs | Ident No. mm, which |
| Clamping- Ø | Designation | Ident No. | |
| Gloves | 3,0 – 32,0 mm For the protection fro | ISGS3200-1 m possible burns and cu | ts |
| Designation | Ident No. | ||
| KEVLAR | 89.141 | ||
| Cooling emulsion | Cooling emulsion to p | rotect the chuck against | corrosion |
| Designation | Ident No. | ||
| 1 liter (supplied) | Synergy 905 | 5085078 | |
| System cleaner (5 liters) | Techniclean MTC 43 | 5046778 |
