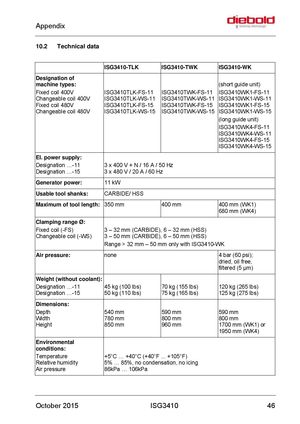

10.2 Technical data

	ISG3410-TLK	ISG3410-TWK	ISG3410-WK
Designation of machine types:			(short guide unit)
Fixed coil 400V	ISG3410TLK-FS-11	ISG3410TWK-FS-11	ISG3410WK1-FS-11
Changeable coil 400V	ISG3410TLK-WS-11	ISG3410TWK-WS-11	ISG3410WK1-WS-11
Fixed coil 480V Changeable coil 480V	ISG3410TLK-FS-15 ISG3410TLK-WS-15	ISG3410TWK-FS-15 ISG3410TWK-WS-15	ISG3410WK1-FS-15 ISG3410WK1-WS-15 (long guide unit) ISG3410WK4-FS-11 ISG3410WK4-WS-11 ISG3410WK4-FS-15 ISG3410WK4-WS-15
El. power supply: Designation …-11	3 x 400 V + N / 16 A / 5	0 Hz
Designation …-15	3 x 480 V / 20 A / 60 H	z
Generator power:	11 kW
Usable tool shanks:	CARBIDE/ HSS
Maximum of tool length:	350 mm	400 mm	400 mm (WK1) 680 mm (WK4)
Clamping range Ø:
Fixed coil (-FS) Changeable coil (-WS)	3 – 32 mm (CARBIDE) 3 – 50 mm (CARBIDE) Range > 32 mm – 50 m	, 6 – 32 mm (HSS) , 6 – 50 mm (HSS) m only with ISG3410-	WK
Air pressure:	none		4 bar (60 psi); dried, oil free, filtered (5 µm)
Weight (without coolant):
Designation …-11	45 kg (100 lbs)	70 kg (155 lbs)	120 kg (265 lbs)
Designation …-15	50 kg (110 lbs)	75 kg (165 lbs)	125 kg (275 lbs)
Dimensions:
Depth	540 mm	590 mm	590 mm
Width	780 mm	800 mm	800 mm
Height	850 mm	960 mm	1700 mm (WK1) or
			1950 mm (WK4)
Environmental conditions:
Temperature	+5°C … +40°C (+40°F	... +105°F)
Relative humidity Air pressure	5% … 85%, no conden 86kPa … 106kPa	sation, no icing
