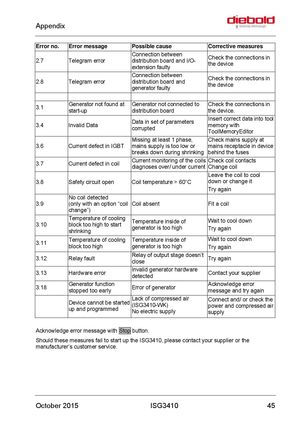

Error no.Error messagePossible causeCorrective measures
2.7Telegram errorConnection between distribution board and I/O- extension faultyCheck the connections in the device
2.8Telegram errorConnection between distribution board and generator faultyCheck the connections in the device
3.1Generator not found at start-upGenerator not connected to distribution boardCheck the connections in the device.
3.4Invalid DataData in set of parameters corruptedInsert correct data into tool memory with ToolMemoryEditor
3.6Current defect in IGBTMissing at least 1 phase, mains supply is too low or breaks down during shrinkingCheck mains supply at mains receptacle in device behind the fuses
3.7Current defect in coilCurrent monitoring of the coils diagnoses over/ under currentCheck coil contacts Change coil
3.8Safety circuit openCoil temperature > 60°CLeave the coil to cool down or change it Try again
3.9No coil detected (only with an option “coil change”)Coil absentFit a coil
3.10Temperature of cooling block too high to start shrinkingTemperature inside of generator is too highWait to cool down Try again
3.11Temperature of cooling block too highTemperature inside of generator is too highWait to cool down Try again
3.12Relay faultRelay of output stage doesn’t closeTry again
3.13Hardware errorInvalid generator hardware detectedContact your supplier
3.18Generator function stopped too earlyError of generatorAcknowledge error message and try again
Device cannot be started up and programmedLack of compressed air (ISG3410-WK) No electric supplyConnect and/ or check the power and compressed air supply

Acknowledge error message with Stop button. Should these measures fail to start up the ISG3410, please contact your supplier or the manufacturer’s customer service.
