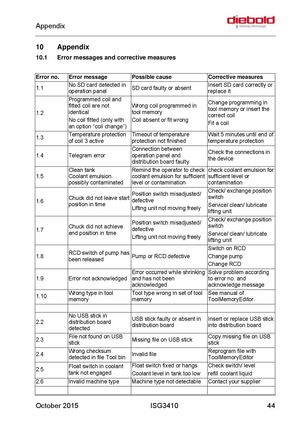

10 Appendix

10.1 Error messages and corrective measures

Error no.Error messagePossible causeCorrective measures
1.1No SD card detected in operation panelSD card faulty or absentInsert SD card correctly or replace it
1.2Programmed coil and fitted coil are not identical No coil fitted (only with an option “coil change”)Wrong coil programmed in tool memory Coil absent or fit wrongChange programming in tool memory or insert the correct coil Fit a coil
1.3Temperature protection of coil 3 activeTimeout of temperature protection not finishedWait 5 minutes until end of temperature protection
1.4Telegram errorConnection between operation panel and distribution board faultyCheck the connections in the device
1.5Clean tank Coolant emulsion possibly contaminatedRemind the operator to check coolant emulsion for sufficient level or contaminationcheck coolant emulsion for sufficient level or contamination
1.6Chuck did not leave start position in timePosition switch misadjusted/ defective Lifting unit not moving freelyCheck/ exchange position switch Service/ clean/ lubricate lifting unit
1.7Chuck did not achieve end position in timePosition switch misadjusted/ defective Lifting unit not moving freelyCheck/ exchange position switch Service/ clean/ lubricate lifting unit
1.8RCD switch of pump has been releasedPump or RCD defectiveSwitch on RCD Change pump Change RCD
1.9Error not acknowledgedError occurred while shrinking and has not been acknowledgedSolve problem according to error no. and acknowledge message
1.10Wrong type in tool memoryTool type wrong in set of tool memorySee manual of ToolMemoryEditor.
2.2No USB stick in distribution board detectedUSB stick faulty or absent in distribution boardInsert or replace USB stick into distribution board
2.3File not found on USB stickMissing file on USB stickCopy missing file on USB stick
2.4Wrong checksum detected in file Tool.binInvalid fileReprogram file with ToolMemoryEditor
2.5Float switch in coolant tank not engagedFloat switch fixed or hangs Coolant level in tank too lowCheck switch/ level refill coolant liquid
2.6Invalid machine typeMachine type not detectableContact your supplier
