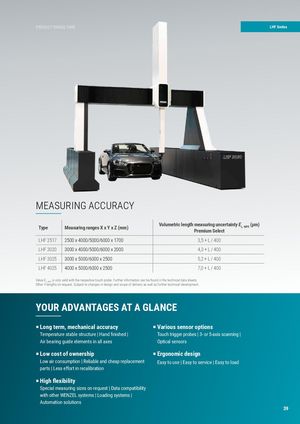

WENZEL GESAMTKATALOGPRODUCT RANGE CMM LHF Series
MEASURING ACCURACY
| Type | Measuring ranges X x Y x Z (mm) | Volumetric length measuring uncertaintyEL, MPE (µm) Premium Select |
| LHF 2517 | 2500 x 4000/5000/6000 x 1700 | 3,5 + L / 400 |
| LHF 3020 | 3000 x 4000/5000/6000 x 2000 | 4,3 + L / 400 |
| LHF 3025 | 3000 x 5000/6000 x 2500 | 5,2 + L / 400 |
| LHF 4025 | 4000 x 5000/6000 x 2500 | 7,0 + L / 400 |
Value E is only valid with the respective touch probe. Further information can be found in the technical data sheets. Other Y-lengths on request. Subject to changes in design and scope of delivery as well as further technical development.L, MPE
YOUR ADVANTAGES AT A GLANCE
P Long term, mechanical accuracy P Various sensor options
Temperature stable structure | Hand fi nished | Touch trigger probes | 3- or 5-axis scanning | Air bearing guide elements in all axes Optical sensors
P Low cost of ownership P Ergonomic design
Low air consumption | Reliable and cheap replacement Easy to use | Easy to service | Easy to load parts | Less effort in recalibration
P High fl exibility
Special measuring sizes on request | Data compatibility with other WENZEL systems | Loading systems |
