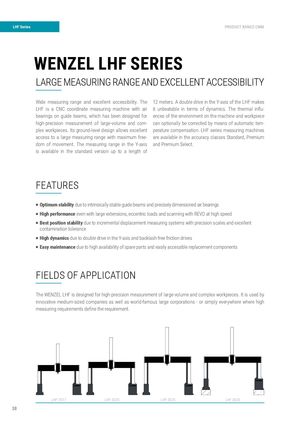

| LHF Series | PRODUCT RANGE CMM |
| WENZEL LHF SERIES | |
| LARGE MEASURING RANGE AND EXCELLENT ACCESSIBILITY | |
| Wide measuring range and excellent accessibility. The | 12 meters. A double drive in the Y-axis of the LHF makes |
| LHF is a CNC coordinate measuring machine with air | it unbeatable in terms of dynamics. The thermal infl u- |
| bearings on guide beams, which has been designed for | ences of the environment on the machine and workpiece |
| high-precision measurement of large-volume and com- | can optionally be corrected by means of automatic tem- |
| plex workpieces. Its ground-level design allows excellent | perature compensation. LHF series measuring machines |
| access to a large measuring range with maximum free- | are available in the accuracy classes Standard, Premium |
| dom of movement. The measuring range in the Y-axis | and Premium Select. |
is available in the standard version up to a length of FEATURES Optimum stability due to intrinsically stable guide beams and precisely dimensioned air bearings P
P High performance even with large extensions, eccentric loads and scanning with REVO at high speed P Best position stability due to incremental displacement measuring systems with precision scales and excellent contamination tolerance P High dynamics due to double drive in the Y-axis and backlash-free friction drives P Easy maintenance due to high availability of spare parts and easily accessible replacement components
FIELDS OF APPLICATION
The WENZEL LHF is designed for high-precision measurement of large-volume and complex workpieces. It is used by innovative medium-sized companies as well as world-famous large corporations - or simply everywhere where high measuring requirements defi ne the requirement.
LHF 2517 LHF 3020 LHF 3025 LHF 4025
LHF Series
MEASURING ACCURACY
Volumetric length measuring uncertainty E (µm)
| Type | Measuring ranges X x Y x Z (mm) | L, MPE |
| Premium Select | ||
| LHF 2517 | 2500 x 4000/5000/6000 x 1700 | 3,5 + L / 400 |
| LHF 3020 | 3000 x 4000/5000/6000 x 2000 | 4,3 + L / 400 |
| LHF 3025 | 3000 x 5000/6000 x 2500 | 5,2 + L / 400 |
| LHF 4025 | 4000 x 5000/6000 x 2500 | 7,0 + L / 400 |
Value E is only valid with the respective touch probe. Further information can be found in the technical data sheets. Other Y-lengths on request. Subject to changes in design and scope of delivery as well as further technical development.L, MPE YOUR ADVANTAGES AT A GLANCE P Long term, mechanical accuracy P Various sensor options
Temperature stable structure | Hand fi nished | Touch trigger probes | 3- or 5-axis scanning | Air bearing guide elements in all axes Optical sensors
P Low cost of ownership P Ergonomic design
Low air consumption | Reliable and cheap replacement Easy to use | Easy to service | Easy to load parts | Less effort in recalibration
P High fl exibility
Special measuring sizes on request | Data compatibility with other WENZEL systems | Loading systems | Automation solutions
