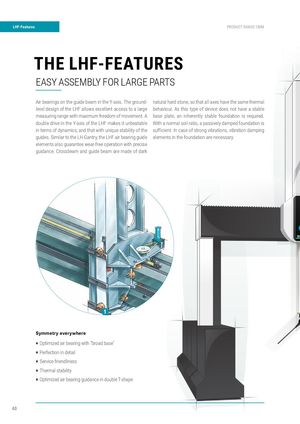

THE LHF-FEATURES
EASY ASSEMBLY FOR LARGE PARTS
Air bearings on the guide beam in the Y-axis. The ground-natural hard stone, so that all axes have the same thermal
level design of the LHF allows excellent access to a largebehaviour. As this type of device does not have a stable
measuring range with maximum freedom of movement. Abase plate, an inherently stable foundation is required.
double drive in the Y-axis of the LHF makes it unbeatableWith a normal soil ratio, a passively damped foundation is
in terms of dynamics; and that with unique stability of thesuffi cient. In case of strong vibrations, vibration damping
guides. Similar to the LH-Gantry, the LHF air bearing guideelements in the foundation are necessary.

elements also guarantee wear-free operation with precise guidance. Crossbeam and guide beam are made of dark

Double drive in the Y-axis P High dynamic P Stability of the guide (base) P Self-stable guide beams P Backlash-free friction drive for maximum Acceleration/Speed

Symmetry everywhere P Optimized air bearing with “broad base” P Perfection in detail P Service friendliness P Thermal stability P Optimized air bearing guidance in double T-shape
