LH-Features PRODUCT RANGE CMM

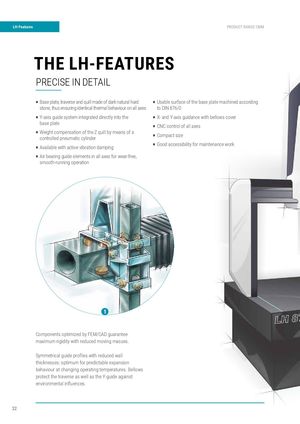

THE LH-FEATURES

PRECISE IN DETAIL

P Base plate, traverse and quill made of dark natural hard P Usable surface of the base plate machined according stone, thus ensuring identical thermal behaviour on all axes to DIN 876/0 P Y-axis guide system integrated directly into the P X- and Y-axis guidance with bellows cover base plate P CNC control of all axes P Weight compensation of the Z quill by means of a P Compact size controlled pneumatic cylinder P Good accessibility for maintenance work P Available with active vibration damping P Air bearing guide elements in all axes for wear-free, smooth-running operation

Components optimized by FEM/CAD guarantee maximum rigidity with reduced moving masses. Symmetrical guide profi les with reduced wall thicknesses: optimum for predictable expansion behaviour at changing operating temperatures. Bellows protect the traverse as well as the Y-guide against environmental infl uences.
