THE LH-FEATURES PRECISE IN DETAIL P Base plate, traverse and quill made of dark natural hard P Usable surface of the base plate machined according stone, thus ensuring identical thermal behaviour on all axes to DIN 876/0

P Y-axis guide system integrated directly into the P X- and Y-axis guidance with bellows cover base plate P CNC control of all axes P Weight compensation of the Z quill by means of a P Compact size controlled pneumatic cylinder P Good accessibility for maintenance work P Available with active vibration damping P Air bearing guide elements in all axes for wear-free, smooth-running operation

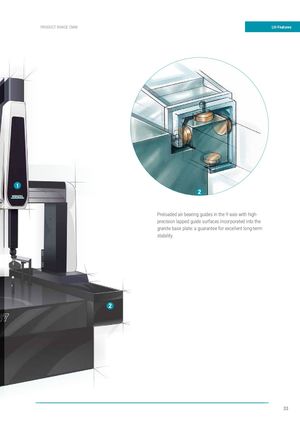

Preloaded air bearing guides in the Y-axis with highprecision lapped guide surfaces incorporated into the granite base plate: a guarantee for excellent long-term stability.

Components optimized by FEM/CAD guarantee maximum rigidity with reduced moving masses. Symmetrical guide profi les with reduced wall thicknesses: optimum for predictable expansion behaviour at changing operating temperatures. Bellows protect the traverse as well as the Y-guide against environmental infl uences.
