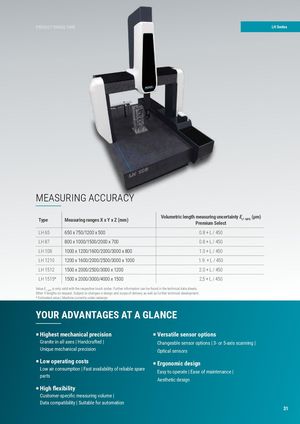

LH SeriesLH Series PRODUCT RANGE CMM
WENZEL LH SERIES
THE FAST AND EASY WAY TO EXACT MEASUREMENT RESULTS
With the LH you benefi t from an extremely functional,instrument for a wide range of applications. With the cur-
effective and fl exible measuring machine that is reli-rent generation of air-bearing bridge machines, WENZEL
able and easy to operate.The success of our coordinatecontinues the progress in precision, effi ciency and lon-
measuring machines is based on a proven holistic con-gevity. With its revolutionary design, the LH impresses
cept consisting of fi rst-class mechanical engineering,with high mechanical accuracy, perfect ergonomics and
intelligent software and accessory options and a com-increased dynamics. CMMs of the LH series are avail-
prehensive service package. Stable, reliable and fullyable in the accuracy classes Standard, Premium and
dynamic, the LH is a universal and fl exible measuringPremium-Select.

FEATURES P High-quality machine components harmonize in perfect interaction and ensure long machine running times MEASURING ACCURACY P Excellent long-term stability due to air bearing guides incorporated into the granite base plate and high-precision lapped guide surfaces

TypeMeasuring ranges X x Y x Z (mm)Volumetric length measuring uncertaintyEL, MPE (µm) Premium Select
LH 65650 x 750/1200 x 5000.8 + L / 450
LH 87800 x 1000/1500/2000 x 7000.8 + L / 450
LH 1081000 x 1200/1600/2000/3000 x 8001.0 + L / 450
LH 12101200 x 1600/2000/2500/3000 x 10001.9 + L / 450
LH 15121500 x 2000/2500/3000 x 12002.0 + L / 450
LH 15151500 x 2000/3000/4000 x 15002,5 + L / 450

P High-resolution scales ensure exact positioning and precise measurement results P Innovative sensor technology ensures precise detection of free-form surfaces and geometric elements P Perfect working ergonomics for comfortable and safe operation P Highest investment security: Modular design ensures future upgrade of the CMM

Value E is only valid with the respective touch probe. Further information can be found in the technical data sheets. The LH is ideal for all applications requiring high accuracy and high throughput. The LH series is used in almost all Other Y-lengths on request. Subject to changes in design and scope of delivery as well as further technical development.L, MPE * Estimated value | Machine currently under redesign areas of industry and measures components in detail from watch manufacture through to the production of large engines. The Y-axis can be customized in length for special sizes. YOUR ADVANTAGES AT A GLANCE

P Highest mechanical precision P Versatile sensor options

Granite in all axes | Handcrafted | Changeable sensor options | 3- or 5-axis scanning | Unique mechanical precision Optical sensors

P Low operating costs Ergonomic design

P

Low air consumption | Fast availability of reliable spare Easy to operate | Ease of maintenance | parts Aesthetic design

P High fl exibility

Customer-specifi c measuring volume |

LH 65 LH 87 LH 108 LH 1210 LH 1512 LH 1515 Data compatibility | Suitable for automation
