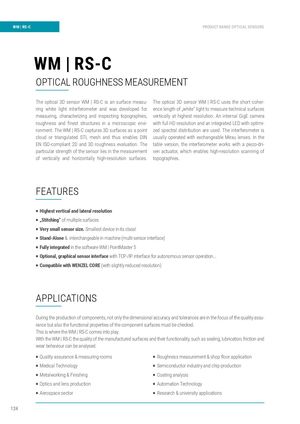

WM | RS-CPRODUCT RANGE OPTICAL SENSORS
WM | RS-C
OPTICAL ROUGHNESS MEASUREMENT
The optical 3D sensor WM | RS-C is an surface measu-The optical 3D sensor WM | RS-C uses the short coher-
ring white light interferometer and was developed forence length of „white“ light to measure technical surfaces
measuring, characterizing and inspecting topographies,vertically at highest resolution. An internal GigE camera
roughness and fi nest structures in a microscopic envi-with full HD resolution and an integrated LED with optimi-
ronment. The WM | RS-C captures 3D surfaces as a pointzed spectral distribution are used. The interferometer is
cloud or triangulated STL mesh and thus enables DINusually operated with exchangeable Mirau lenses. In the
EN ISO-compliant 2D and 3D roughness evaluation. Thetable version, the interferometer works with a piezo-dri-
particular strength of the sensor lies in the measurementven actuator, which enables high-resolution scanning of
of vertically and horizontally high-resolution surfaces.topographies.

FEATURES P Highest vertical and lateral resolution P „Stitching“ of multiple surfaces P Very small sensor size. Smallest device in its class!

P Stand-Alone & interchangeable in machine (multi-sensor interface) P Fully integrated in the software WM | PointMaster 5 P Optional, graphical sensor interface with TCP-/IP interface for autonomous sensor operation... P Compatible with WENZEL CORE (with slightly reduced resolution)

APPLICATIONS

During the production of components, not only the dimensional accuracy and tolerances are in the focus of the quality assurance but also the functional properties of the component surfaces must be checked. This is where the WM | RS-C comes into play. With the WM | RS-C the quality of the manufactured surfaces and their functionality, such as sealing, lubrication, friction and wear behaviour can be analysed.

P Quality assurance & measuring roomsP Roughness measurement & shop fl oor application
P Medical TechnologyP Semiconductor industry and chip production
P Metalworking & FinishingP Coating analysis
P Optics and lens productionP Automation Technology
P Aerospace sectorP Research & university applications
