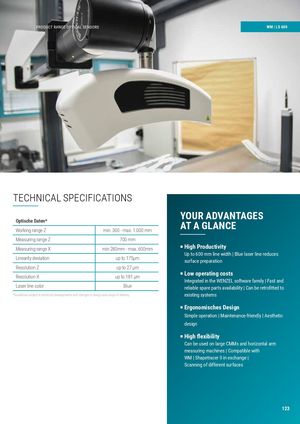

PRODUCT RANGE OPTICAL SENSORS WM | LS 600

TECHNICAL SPECIFICATIONS

YOUR ADVANTAGES

Optische Daten
Working range Zmin. 300 - max. 1.000 mm
Measuring range Z700 mm
Measuring range Xmin 280mm - max. 600mm
Linearity deviationup to 175µm
Resolution Zup to 27 µm
Resolution Xup to 181 µm
Laser line colorBlue

P High Productivity

Up to 600 mm line width | Blue laser line reduces surface preparation

P Low operating costs

Integrated in the WENZEL software family | Fast and *Guidelines subject to technical developments and changes in design and scope of delivery. existing systems

P Ergonomisches Design

Simple operation | Maintenance-friendly | Aesthetic design

P High fl exibility

Can be used on large CMMs and horizontal arm measuring machines | Compatible with WM | Shapetracer II in exchange | Scanning of different surfaces
