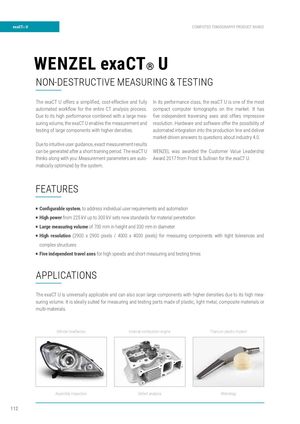

exaCT UCOMPUTED TOMOGRAPHY PRODUCT RANGE
WENZEL exaCT U
NON-DESTRUCTIVE MEASURING & TESTING
The exaCT U offers a simplifi ed, cost-effective and fullyIn its performance class, the exaCT U is one of the most
automated workfl ow for the entire CT analysis process.compact computer tomographs on the market. It has
Due to its high performance combined with a large mea-fi ve independent traversing axes and offers impressive
suring volume, the exaCT U enables the measurement andresolution. Hardware and software offer the possibility of
testing of large components with higher densities.automated integration into the production line and deliver
market-driven answers to questions about industry 4.0.
Due to intuitive user guidance, exact measurement results
can be generated after a short training period. The exaCT UWENZEL was awarded the Customer Value Leadership
thinks along with you: Measurement parameters are auto-Award 2017 from Frost & Sullivan for the exaCT U.

matically optimized by the system. FEATURES P Confi gurable system, to address individual user requirements and automation High power from 225 kV up to 300 kV sets new standards for material penetration

P Large measuring volume of 700 mm in height and 330 mm in diameter P P High resolution (2900 x 2900 pixels / 4000 x 4000 pixels) for measuring components with tight tolerances and complex structures P Five independent travel axes for high speeds and short measuring and testing times

APPLICATIONS

The exaCT U is universally applicable and can also scan large components with higher densities due to its high measuring volume. It is ideally suited for measuring and testing parts made of plastic, light metal, composite materials or multi-materials.

Vehicle headlamps Internal combustion engine Titanium plastic implant

Assembly inspection Defect analysis Metrology

exaCT U

B L

YOUR BENEFITS

AT A GLANCE

H

P Best results through high performance

Fast scanning | Fast reconstruction | Fast evaluation MACHINE PROFILE P One scan, many evaluations,

maximum time saving

Metrology with virtual CMM | NDT and error analysis I exaCT U 225 Microstructure analysis

Space Requirements 1960 x 2350 x 2400 mmP High effi ciency due to low space
(L x B x H)
requirements
X-Ray (Voltage, Power)225 kV, 300 W
Large measuring volume | Suitable for workshops |
Detector Resolution2900 x 2900 Pixel, 150 μmAutomation solutions
Work Piece DimensionsØ 330 x 700 mm*
P High fl exibility
exaCT U 300Various volumes and confi gurations | Software for all
Space Requirements 1960 x 2350 x 2400 mmapplications | Choice of radiation sources and detector

(L x B x H) resolutions X-Ray (Voltage, Power) 300 kV, 300 W P Low operating costs

Detector Resolution 4000 x 4000 Pixel, 100 µm Precision mechanics for higher availability |

Work Piece Dimensions Ø 330 x 700 mm* Longer calibration intervals

* The measurable height depends on the component diameter.
