exaCT L COMPUTED TOMOGRAPHY PRODUCT RANGE

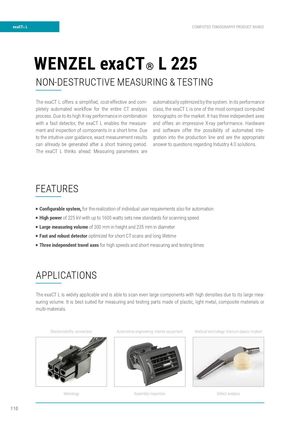

WENZEL exaCT L 225
NON-DESTRUCTIVE MEASURING & TESTING
The exaCT L offers a simplifi ed, cost-effective and com-automatically optimized by the system. In its performance
pletely automated workfl ow for the entire CT analysisclass, the exaCT L is one of the most compact computed
process. Due to its high X-ray performance in combinationtomographs on the market. It has three independent axes
with a fast detector, the exaCT L enables the measure-and offers an impressive X-ray performance. Hardware
ment and inspection of components in a short time. Dueand software offer the possibility of automated inte-
to the intuitive user guidance, exact measurement resultsgration into the production line and are the appropriate
can allready be generated after a short training period.answer to questions regarding Industry 4.0 solutions.

The exaCT L thinks ahead: Measuring parameters are

FEATURES

P Confi gurable system, for the realization of individual user requirements also for automation P High power of 225 kV with up to 1600 watts sets new standards for scanning speed P Large measuring volume of 300 mm in height and 235 mm in diameter P Fast and robust detector optimized for short CT scans and long lifetime P Three independent travel axes for high speeds and short measuring and testing times

APPLICATIONS

The exaCT L is widely applicable and is able to scan even large components with high densities due to its large measuring volume. It is best suited for measuring and testing parts made of plastic, light metal, composite materials or multi-materials.

Electromobility: connectors Automotive engineering: Interior equipment Medical technology: titanium-plastic implant

Metrology Assembly inspection Defect analysis
