E	: maximum permissible	E	: maximum permissible	R	: maximum permissible
error of length measurement0,MPE		error of length 150,MPE		limit of the repeatability range0,MPL

5 gauges have to be measured 3	5 length gauges have to be	Extreme value of the repeatabi-
times with one probing at each	measured 3 times in the YZ- or	lity range of the length measu-
end, in 7 different directions. All	XZ plane with opposite styli,	rement error, calculated by three
measuring results must be within	mounted 150 mm off the Z	repeated measurements on each
E .	spindle axis.	size for a total of 35 values. The
0		35 repeatability range results
		must be within the specified
P		. R
	: maximum permissible MPE	: maximum permissible 0,MPL

single stylus form errorFTU,MPE scanning probing errorTHP/t

A precision sphere has to be A precision sphere has to be measured with 25 probings. P scanned with 4 defined lines. THP

is the range of all radii. FTU is the range of all radii.

P	= sphere form, - R THP = R = sphere form. - R = R
Calibration sphere in the middle FTUmaxmin	scanning. Calibration sphere in maxmin
of the volume.	the middle of the volume.
Technical Characteristics
Mechanical Frame:	X: Micromachined anodized light alloy extrusion
	Y: Integral dovetail guideways, machined into the table
	Z: Micromachined anodized light alloy extrusion
	Surface Plate: Material: Granite
	Part Locking: threaded inserts M8 x 1.25
	Flatness: according to DIN 876/III
	Sliding System: Air bearings on all axes
Measuring System:	METALLUR® linear scales. System Resolution: 0.039 μm
Temperature Compensation:	Structural multi-sensor temperature compensation
Ram Counterbalance:	Pneumatic, adjustable
Bellows and Covers:	X and Y air bearing guideways with bellows
	Air Supply: Minimum air supply pressure: 0.5 MPa
	Air consumption: 150 Nl/min
	Environment: Metrological specification temperature range: 18 ÷ 22 °C; 16 ÷ 26 °C; 15 ÷ 30 °C
	Operating temperature: 10 ÷ 40 °C
	Relative humidity: 20% - 90 % non condensing
Probe Heads and Sensors:	HH-A, HH-AS8, HP-S-X1C, HP-S-X3C, HP-S-X5

TP200, HP-T, HP-TM, HP-S-X1, HP-L-10.6T

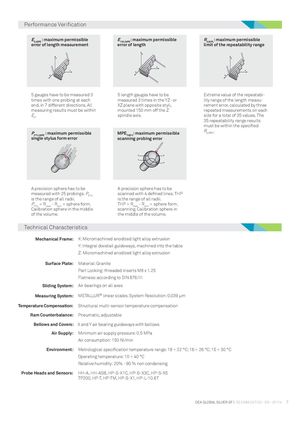

Координатно-измерительные машины HEXAGON серии DEA GLOBAL SILVER SF data sheet - страница 7
