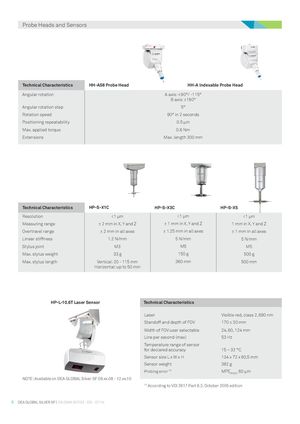

Probe Heads and Sensors

Technical Characteristics HH-AS8 Probe Head HH-A Indexable Probe Head

Angular rotation A axis: +90°/ -115° B axis: ±180° Angular rotation step 5° Rotation speed 90° in 2 seconds

Positioning repeatability 0.5 μm Max. applied torque 0.6 Nm Extensions Max. length 300 mm

Technical Characteristics HP-S-X1C HP-S-X3C HP-S-X5

Resolution <1 μm <1 μm <1 μm

Measuring range± 2 mm in X, Y and Z± 1 mm in X, Y and Z1 mm in X, Y and Z
Overtravel range± 2 mm in all axes± 1.25 mm in all axes± 1 mm in all axes

Linear stiffness 1.2 N/mm 5 N/mm 5 N/mm

Stylus jointM3M5M5
Max. stylus weight33 g150 g500 g

Max. stylus length Vertical: 20 - 115 mm 360 mm 500 mm

Horizontal: up to 50 mm

HP-L-10.6T Laser Sensor Technical Characteristics

LaserVisible red, class 2, 690 nm
Standoff and depth of FOV 170 ± 30 mm
Width of FOV user selectable24, 60, 124 mm
Line per second (max)53 Hz
Temperature range of sensor
for declared accuracy15 ~ 32 °C
Sensor size L x W x H134 x 72 x 60,5 mm
Sensor weight382 g
Probing error (*)60 μm MPE

PF(OT) NOTE: Available on DEA GLOBAL Silver SF 09.xx.08 - 12.xx.10 (*) According to VDI 2617 Part 6.2, October 2005 edition
