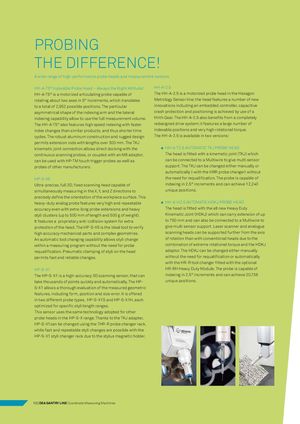

PROBING

THE DIFFERENCE!

A wide range of high-performance probe heads and measurement sensors

HH-A-T5° Indexable Probe Head – Always the Right Attitude!HH-A-2.5
HH-A-T5° is a motorized articulating probe capable ofThe HH-A-2.5 is a motorized probe head in the Hexagon
rotating about two axes in 5° increments, which translatesMetrology Sensor line; the head features a number of new
to a total of 2,952 possible positions. The particularinnovations including an embedded controller, capacitive
asymmetrical shape of the indexing arm and the lateralcrash protection and positioning is achieved by use of a
indexing capability allow to use the full measurement volume.Hirth Gear. The HH-A-2.5 also benefits from a completely
The HH-A-T5° also features high speed indexing with fasterredesigned drive system; it features a large number of
index changes than similar products, and thus shorter timeindexable positions and very high rotational torque.
cycles. The robust aluminum construction and rugged designThe HH-A-2.5 is available in two versions:
permits extension rods with lengths over 300 mm. The TKJ
kinematic joint connection allows direct docking with theHH-A-T2.5 AUTOMATIC TKJ PROBE HEAD
continuous scanning probes, or coupled with an M8 adaptor,The head is fitted with a kinematic joint (TKJ) which
can be used with HP-TM touch trigger probes as well ascan be connected to a Multiwire to give multi sensor
probes of other manufacturers.support. The TKJ can be changed either manually or
automatically (-with the HRR probe changer) without
HP-S-X5the need for requalification. The probe is capable of
Ultra-precise, full 3D, fixed scanning head capable ofindexing in 2.5° increments and can achieve 12,240
simultaneously measuring in the X, Y, and Z directions tounique positions.
precisely define the orientation of the workpiece surface. This
heavy-duty analog probe features very high and repeatableHH-A-H2.5 AUTOMATIC HDKJ PROBE HEAD
accuracy even with extra-long probe extensions and heavyThe head is fitted with the all new Heavy Duty
styli clusters (up to 500 mm of length and 500 g of weight).Kinematic Joint (HDKJ) which can carry extension of up
It features a proprietary anti-collision system for extrato 750 mm and can also be connected to a Multiwire to
protection of the head. The HP-S-X5 is the ideal tool to verifygive multi sensor support. Laser scanner and analogue
high accuracy mechanical parts and complex geometries.scanning heads can be supported further from the axis
An automatic tool changing capability allows styli changeof rotation than with conventional heads due to the
within a measuring program without the need for probecombination of extreme rotational torque and the HDKJ
requalification. Pneumatic clamping of styli on the headadaptor. The HDKJ can be changed either manually
permits fast and reliable changes.without the need for requalification or automatically
with the HR-R tool changer fitted with the optional
HP-S-X1HR-RH Heavy Duty Module. The probe is capable of
The HP-S-X1 is a high-accuracy 3D scanning sensor, that canindexing in 2.5° increments and can achieve 20,736
take thousands of points quickly and automatically. The HP-unique positions.

S-X1 allows a thorough evaluation of the measured geometric features, including form, position and size error. It is offered in two different probe types, HP-S-X1S and HP-S-X1H, each optimized for specific styli length ranges.

This sensor uses the same technology adopted for other probe heads in the HP-S-X range. Thanks to the TKJ adapter, HP-S-X1can be changed using the THR-R probe changer rack, while fast and repeatable styli changes are possible with the HP-S-X1 styli changer rack due to the stylus magnetic holder.
