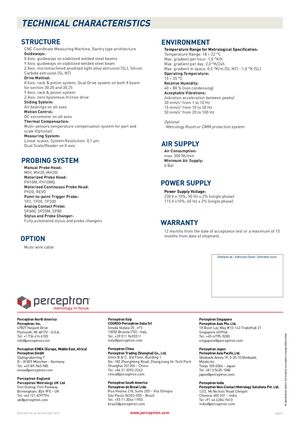

TECHNICAL CHARACTERISTICS

STRUCTUREENVIRONMENT
CNC Coordinate Measuring Machine, Gantry type architectureTemperature Range for Metrological Specification:
Guideways:Temperature Range: 18 ÷ 22 °C
X Axis: guideways on stabilized welded steel beamsMax. gradient per hour: 1,0 °K/h
Y Axis: guideways on stabilized welded steel beamMax. gradient per day: 2,0 °K/24h
Z Axis: micromachined anodized light alloy extrusion (SL), SiliconMax. gradient in space: 0,5 °K/m (SL NT) - 1,0 °K (SL)
Carbide extrusion (SL NT)Operating Temperature:
Drive Method:15 ÷ 35 °C
X Axis: rack & pinion system, Dual Drive system on both X beamRelative Humidity:
for section 30.20 and 30.2540 ÷ 80 % (non condensing)
Y Axis: rack & pinion systemAcceptable Vibrations:
Z Axis: zero hysteresis friction drive(vibration acceleration between peaks)
Sliding System:30 mm/s2 from 1 to 10 Hz
Air bearings on all axes15 mm/s2 from 10 to 20 Hz
Motion Control:50 mm/s2 from 20 to 100 Hz
DC servomotor on all axes
Thermal Compensation:Optional
Multi-sensors temperature compensation system for part and-Metrology Room or CMM protection system
scale (Optional)
Measuring System:
Linear scales, System Resolution: 0,1 μm.AIR SUPPLY
Dual Scale/Reader on X axis
Air Consumption:
max. 300 Nl/min
PROBING SYSTEMMinimum Air Supply:
6 Bar
Manual Probe Head:
MIH, MH20, MH20i
Motorized Probe Head:
PH10M, PH10MQPOWER SUPPLY
Motorized Continuous Probe Head:
PH20, REVOPower Supply Voltage:
Point-to-point Trigger Probe:230 V ± 10%; 50 Hz ± 2% (single phase)
TP2, TP20, TP200115 V ±10%; 60 Hz ± 2% (single phase)
Analog Contact Probe:
SP600, SP25M, SP80
Stylus and Probe Changer:
Fully automated stylus and probe changersWARRANTY
12 months from the date of acceptance test or a maximum of 15
OPTIONmonths from date of shipment.

Multi-wire cable Distribuito da / Authorized Dealer / Vertrieben durch:
