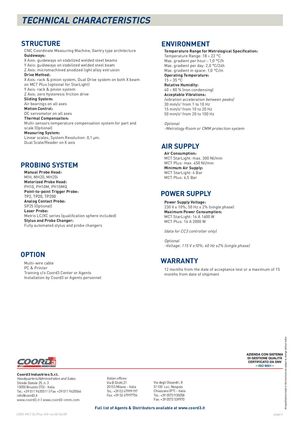

TECHNICAL CHARACTERISTICS
| STRUCTURE | ENVIRONMENT |
| CNC Coordinate Measuring Machine, Gantry type architecture | Temperature Range for Metrological Specification: |
| Guideways: | Temperature Range: 18 ÷ 22 °C |
| X Axis: guideways on stabilized welded steel beams | Max. gradient per hour:: 1,0 °C/h |
| Y Axis: guideways on stabilized welded steel beam | Max. gradient per day: 2,0 °C/24h |
| Z Axis: micromachined anodized light alloy extrusion | Max. gradient in space: 1,0 °C/m |
| Drive Method: | Operating Temperature: |
| X Axis: rack & pinion system, Dual Drive system on both X beam | 15 ÷ 35 °C |
| on MCT Plus (optional for StarLight) | Relative Humidity: |
| Y Axis: rack & pinion system | 40 ÷ 80 % (non condensing) |
| Z Axis: zero hysteresis friction drive | Acceptable Vibrations: |
| Sliding System: | (vibration acceleration between peaks) |
| Air bearings on all axes | 30 mm/s2 from 1 to 10 Hz |
| Motion Control: | 15 mm/s2 from 10 to 20 Hz |
| DC servomotor on all axes | 50 mm/s2 from 20 to 100 Hz |
| Thermal Compensation: | |
| Multi-sensors temperature compensation system for part and | Optional |
| scale (Optional) | -Metrology Room or CMM protection system |
| Measuring System: | |
| Linear scales, System Resolution: 0,1 μm. | |
| Dual Scale/Reader on X axis | AIR SUPPLY |
| Air Consumption: | |
| MCT StarLight: max. 300 Nl/min | |
| PROBING SYSTEM | MCT Plus: max. 450 Nl/min |
| Minimum Air Supply: | |
| Manual Probe Head: | MCT StarLight: 6 Bar |
| MIH, MH20, MH20i | MCT Plus: 6,5 Bar |
| Motorized Probe Head: | |
| PH10, PH10M, PH10MQ | |
| Point-to-point Trigger Probe: | POWER SUPPLY |
| TP2, TP20, TP200 | |
| Analog Contact Probe: | Power Supply Voltage: |
| SP25 (Optional) | 230 V ± 10%; 50 Hz ± 2% (single phase) |
| Laser Probe: | Maximum Power Consumption: |
| Metris LC/XC series (qualification sphere included) | MCT StarLight: 16 A 1600 W |
| Stylus and Probe Changer: | MCT Plus: 16 A 2000 W |
Fully automated stylus and probe changers (data for CC3 controller only) Optional -Voltage: 115 V ±10%; 60 Hz ±2% (single phase)
OPTION
WARRANTY
Multi-wire cable
| PC & Printer | 12 months from the date of acceptance test or a maximum of 15 |
| Training c/o Coord3 Center or Agents | months from date of shipment |
Installation by Coord3 or Agents personnel
Coord3 Industries S.r.l. Headquarters/Administration and Sales: Italian offices:
| Strada Statale 25, n. 3 | Via B Diotti,21 | Via degli Oleandri, 8 |
| 10050 Bruzolo (TO) - Italia | 20153 Milano - Italia | 51100 Loc. Nespolo |
| Tel.: +39 011 9635511 | Fax: +39 011 9635566 | Tel.: +39 02 47999197 | Chiazzano (PT) - Italia |
| info@coord3.it | Fax: +39 02 47997754 | Tel.: +39 0573 935058 |
www.coord3.it | www.coord3-cmm.com Fax: +39 0573 539970 Full list of Agents & Distributors available at www.coord3.it
