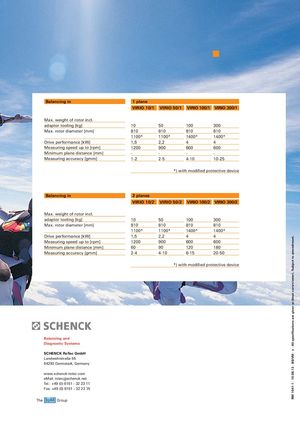

Balancing in 1 plane
VIRIO 10/1 VIRIO 50/1 VIRIO 100/1 VIRIO 300/1
| Max. weight of rotor incl. | ||||
| adaptor tooling[kg] | 10 | 50 | 100 | 300 |
| Max. rotor diameter [mm] | 810 | 810 | 810 | 810 |
| 1100 | 1100 | 1400 | 1400 | |
| Driveperformance [kW] | 1,5 | 2,2 | 4 | 4 |
| Measuringspeed upto [rpm] | 1200 | 900 | 600 | 600 |
| Minimumplane distance [mm] | - | - | - | - |
| Measuringaccuracy[gmm] | 1-2 | 2-5 | 4-10 | 10-25 |
*) with modified protective device*) with modified protective device
Balancing in 2 planes
VIRIO 10/2 VIRIO 50/2 VIRIO 100/2 VIRIO 300/2
| Max. weight of rotor incl. | ||||
| adaptor tooling[kg] | 10 | 50 | 100 | 300 |
| Max. rotor diameter [mm] | 810 | 810 | 810 | 810 |
| 1100 | 1100 | 1400 | 1400 | |
| Driveperformance [kW] | 1,5 | 2,2 | 4 | 4 |
| Measuringspeed upto [rpm] | 1200 | 900 | 600 | 600 |
| Minimumplane distance [mm] | 60 | 90 | 120 | 180 |
| Measuringaccuracy[gmm] | 2-4 | 4-10 | 6-15 | 20-50 |
*) with modified protective device*) with modified protective device
Balancing and Diagnostic Systems SCHENCK RoTec GmbH Landwehrstraße 55 64293 Darmstadt, Germany www.schenck-rotec.com eMail: rotec@schenck.net Tel.: +49 (0) 6151 - 32 23 11 Fax: +49 (0) 6151 - 32 23 15
