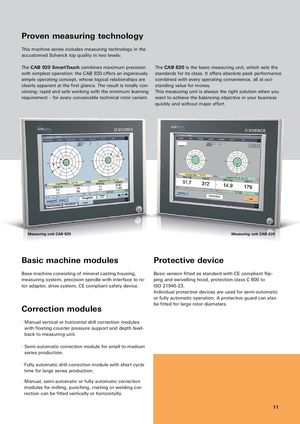

Proven measuring technology

This machine series includes measuring technology in the accustomed Schenck top quality in two levels:

The CAB 920 SmartTouch combines maximum precision The CAB 820 is the basic measuring unit, which sets the
with simplest operation: the CAB 920 offers an ingeniouslystandards for its class. It offers absolute peak performance
simple operating concept, whose logical relationships arecombined with every operating convenience, all at out-
clearly apparent at the first glance. The result is totally con-standing value for money.
vincing: rapid and safe working with the minimum learningThis measuring unit is always the right solution when you
requirement – for every conceivable technical rotor variant.want to achieve the balancing objective in your business

quickly and without major effort.

Measuring unit CAB 920 Measuring unit CAB 820

Basic machine modulesProtective device
Base machine consisting of mineral casting housing,Basic version fitted as standard with CE compliant flip-
measuring system, precision spindle with interface to ro-ping and swivelling hood, protection class C 600 to
tor adaptor, drive system, CE compliant safety device.ISO 21940-23.
Individual protective devices are used for semi-automatic
or fully automatic operation. A protective guard can also
Correction modulesbe fitted for large rotor diameters.

. Manual vertical or horizontal drill correction modules with floating counter pressure support and depth feed- back to measuring unit. . Semi-automatic correction module for small to medium

series production. . Fully automatic drill correction module with short cycle time for large series production. . Manual, semi-automatic or fully automatic correction modules for milling, punching, riveting or welding correction can be fitted vertically or horizontally.
