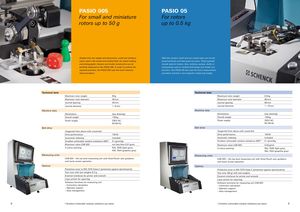

PASIO 005 PASIO 05
For small and miniature For rotors
rotors up to 50 g up to 0.5 kg
| Despite their low weight and dimensions, small and miniature | With this version, small and very small rotors can be bal- |
| rotors used in the dental and medical field, the watch-making | anced perfectly and with great accuracy. These typically |
| and photographic industry and model construction are all | include electric motors, fans, turbines, pumps, shafts or |
| perfectly balanced on the PASIO 005. In order to achieve the | components used in medical technology and model con- |
| required precision, the PASIO 005 uses the travel measure- | struction. The PASIO 05 also uses the force measurement |
| ment procedure. | procedure and has a non-magnetic measuring bridge. |
| Technical data | ||
| Maximum rotor weight | 50g | |
| Maximum rotor diameter | 30 mm | |
| Journal spacing | 45 mm | |
| Journal diameter | 1 – 6 mm | |
| Machine data | ||
| Dimensions | (see drawing) | |
| Overall weight | 135kg | |
| Power supply | 230V AC, 50 / 60 Hz | |
| Belt drive | ||
| Tangential from above with round belt | ||
| Driveperformance | 100 W | |
| Automatic indexing | included | |
| Smallest achievable residual unbalance KER1) | 0.1gmm/kg | |
| Maximum value CAB 920 | not less than 0.01gmm | |
| 2-colour painting | RAL 7035 (light grey), RAL 7024 (graphite grey) | |
| Measuring units | ||
| CAB 920 – the top level measuring unit with Sm and touch screen operation | artTouch user guidance | |
| Options | ||
| Protective cover to ISO 7475 Class C(protection | against ejectedparts) | |
| Test rotor with test weights 6.3g | ||
| External interfaces forprinter and network | ||
| Laserprinter for reporting | ||
| Software functions for measuring unit |
| Technical data | ||
| Maximum rotor weight | 0.5 kg | |
| Maximum rotor diameter | 60 mm | |
| Journal spacing | 65 mm | |
| Journal diameter | 1 – 10 mm | |
| Machine data | ||
| Dimensions | (see drawing) | |
| Overall weight | 135kg | |
| Power supply | 230V AC, 50 / 60 Hz | |
| Belt drive | ||
| Tangential from above with round belt | ||
| Driveperformance | 100 W | |
| Automatic indexing | included | |
| Smallest achievable residual unbalance KER1) | 0.1 gmm/kg | |
| Maximum value CAB 920 | 0.02gmm | |
| 2-colour painting | RAL 7035 (light grey), RAL 7024 (graphite grey) | |
| Measuring units | ||
| CAB 920 – the top level measuring unit with Sm and touch screen operation | artTouch user guidance | |
| Options | ||
| Protective cover to ISO 7475 Class C(protection | against ejectedparts) | |
| Test rotor(60g)with test weights | ||
| External interfaces forprinter and network | ||
| Laserprinter for reporting | ||
| Software functions for measuring unit CAB 920 |
– Correction calculation – Correction calculation – Operator support – Operator support – Data management – Data management
8 1) Smallest achievable residual unbalance per plane 1) Smallest achievable residual unbalance per plane 9
