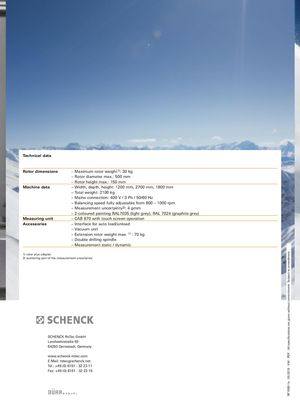

Technical data
Rotor dimensions– Maximum rotor weight1): 30 kg – Rotor diameter max.: 500 mm –Rotor height max.: 150 mm
Machine data– Width, depth, height: 1200 mm, 2700 mm, 1800 mm – Total weight: 2100 kg – Mains connection: 400 V / 3 Ph / 50/60 Hz – Balancing speed fully adjustable from 600 – 1000 rpm – Measurement uncertainty2): 4 gmm –2-coloured painting RAL7035 (light grey), RAL 7024 (graphite grey)
Measuring unit–CAB 870 with touch screen operation
Accessories– Interface for auto load/unload – Vacuum unit – Extension rotor weight max.1): 70 kg – Double drilling spindle –Measurement static / dynamic

1) rotor plus adapter 2) scattering part of the measurement uncertainty

SCHENCK RoTec GmbH Landwehrstraße 55 64293 Darmstadt, Germany www.schenck-rotec.com E-Mail: rotec@schenck.net Tel.: +49 (0) 6151 - 32 23 11 Fax: +49 (0) 6151 - 32 23 15
