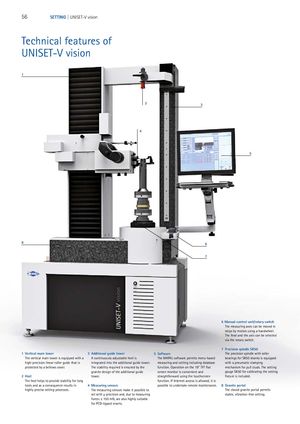

Technical features of
UNISET-V vision
1
2 3
4
5
8 6
7
6 Manual control unit/rotary switch The measuring axes can be moved in steps by motors using a handwheel. The feed and the axis can be selected via the rotary switch. 7 Precision spindle SK50
| 1 Vertical main tower | 3 Additional guide tower | 5 Software | The precision spindle with roller |
| The vertical main tower is equipped with a | A continuously adjustable heel is | The MAPAL software permits menu-based | bearings for SK50 shanks is equipped |
| high-precision linear roller guide that is | integrated into the additional guide tower. | measuring and setting including database | with a pneumatic clamping |
| protected by a bellows cover. | The stability required is ensured by the | function. Operation on the 19" TFT flat | mechanism for pull studs. The setting |
| granite design of the additional guide | screen monitor is convenient and | gauge SK50 for calibrating the setting | |
| 2 Heel | tower. | straightforward using the touchscreen | fixture is included. |
| The heel helps to provide stability for long | function. If Internet access is allowed, it is | ||
| tools and as a consequence results in | 4 Measuring sensors | possible to undertake remote maintenance. | 8 Granite portal |
| highly precise setting processes. | The measuring sensors make it possible to | The closed granite portal permits |
set with µ precision and, due to measuring stable, vibration-free setting. forces ≤ 150 mN, are also highly suitable for PCD-tipped inserts.
