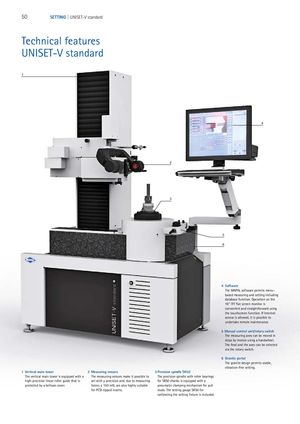

Technical features
UNISET-V standard
1
4
2
3
5 6
| 1 Vertical main tower | 2 Measuring sensors | 3 Precision spindle SK50 |
| The vertical main tower is equipped with a | The measuring sensors make it possible to | The precision spindle with roller bearings |
| high-precision linear roller guide that is | set with µ precision and, due to measuring | for SK50 shanks is equipped with a |
| protected by a bellows cover. | forces ≤ 150 mN, are also highly suitable | pneumatic clamping mechanism for pull |
for PCD-tipped inserts. studs. The setting gauge SK50 for calibrating the setting fixture is included.
