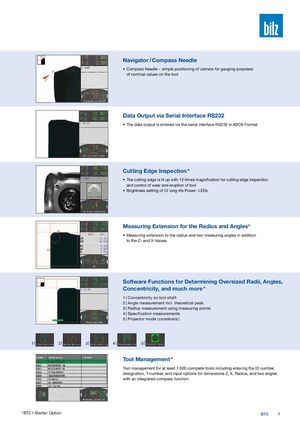

Navigator / Compass Needle

  • Compass Needle – simple positioning of camera for gauging purposes

of nominal values on the tool

Data Output via Serial Interface RS232

  • The data output is entered via the serial interface RS232 in ASCII-Format

Cutting Edge Inspection *

  • The cutting edge is lit up with 12-times magnification for cutting edge inspection

and control of wear and eruption of tool

  • Brightness setting of 12 long-life Power - LEDs

Measuring Extension for the Radius and Angles*

  • Measuring extension to the radius and two measuring angles in addition

to the Z- and X-Values

Software Functions for Determining Oversized Radii, Angles,

Concentricity, and much more *

1 | Concentricity on tool shaft 2 | Angle measurement incl. theoretical peak 3 | Radius measurement using measuring points 4 | Specification measurements 5 | Projector mode ( crosshairs )

1 | 2 | 3 | 4 | 5 |

Tool Management * Tool management for at least 1.000 complete tools including entering the ID number, designation, T-number, and input options for dimensions Z, X, Radius, and two angles with an integrated compass function

* BTC I Starter: Option BTC 7
