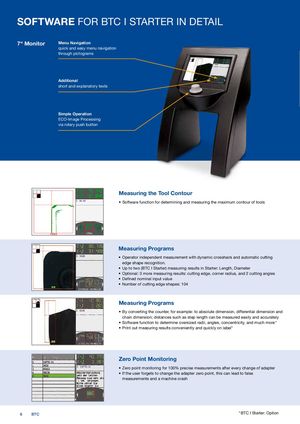

SOFTWARE FOR BTC I STARTER IN DETAIL

7“ Monitor Menu Navigation quick and easy menu navigation through pictograms

Additional short and explanatory texts

Simple Operation ECO-Image Processing via rotary push button

Measuring the Tool Contour

• Software function for determining and measuring the maximum contour of tools

Measuring Programs

• Operator independent measurement with dynamic crosshairs and automatic cutting

edge shape recognition.

• Up to two (BTC I Starter) measuring results in Starter: Length, Diameter
• Optional: 3 more measuring results: cutting edge, corner radius, and 2 cutting angles
• Defined nominal input value
• Number of cutting edge shapes: 104

Measuring Programs

• By converting the counter, for example: to absolute dimension, differential dimension and

chain dimension; distances such as step length can be measured easily and accurately

• Software function to determine oversized radii, angles, concentricity, and much more *
• Print out measuring results conveniently and quickly on label*

Zero Point Monitoring

• Zero point monitoring for 100% precise measurements after every change of adapter
• If the user forgets to change the adapter zero point, this can lead to false

measurements and a machine crash * BTC I Starter: Option

6 BTC * BTC I Starter: Option
