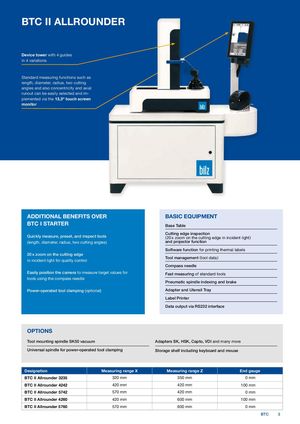

BTC II ALLROUNDER
Device tower with 4 guides in 4 variations
Standard measuring functions such as length, diameter, radius, two cutting angles and also concentricity and axial runout can be easily selected and implemented via the 13,3“ touch screen monitor
| ADDITIONAL BENEFITS OVER | BASIC EQUIPMENT |
| BTC I STARTER | |
| Base Table | |
| Cutting edge inspection | |
| Quickly measure, preset, and inspect tools | (20 x zoom on the cutting edge in incident light) |
| (length, diameter, radius, two cutting angles) | and projector function |
Software function for printing thermal labels 20 x zoom on the cutting edge Tool management (tool data) in incident light for quality control
Compass needle
| Easily position the camera to measure target values for | Fast measuring of standard tools |
| tools using the compass needle | |
| Pneumatic spindle indexing and brake | |
| Power-operated tool clamping (optional) | Adapter and Utensil Tray |
Label Printer Data output via RS232 interface
OPTIONS
Tool mounting spindle SK50 vacuum Adapters SK, HSK, Capto, VDI and many more Universal spindle for power-operated tool clamping Storage shelf including keyboard and mouse
| Designation | Measuring range X | Measuring range Z | End gauge |
| BTC II Allrounder 3235 | 320 mm | 350 mm | 0 mm |
| BTC II Allrounder 4242 | 420 mm | 420 mm | 100 mm |
| BTC II Allrounder 5742 | 570 mm | 420 mm | 0 mm |
| BTC II Allrounder 4260 | 420 mm | 600 mm | 100 mm |
| BTC II Allrounder 5760 | 570 mm | 600 mm | 0 mm |
