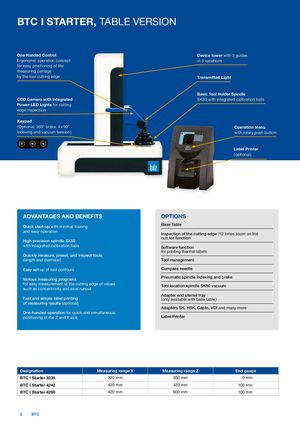

BTC I STARTER, TABLE VERSION
One Handed Control Device tower with 3 guides Ergonomic operation concept in 3 variations for easy positioning of the measuring carriage by the tool cutting edge Transmitted Light
Basic Tool Holder Spindle CCD Camera with Integrated SK50 with integrated calibration balls Power-LED Lights for cutting edge inspection Keypad ( Optional: 360° brake, 4 x 90° Operation Menu indexing and vacuum tension ) with rotary push button
Label Printer ( optional )
ADVANTAGES AND BENEFITS OPTIONS
Quick start-up with minimal training Base Table and easy operation (12 times zoom on the Inspection of the cutting edge cutt tor function High precision spindle SK50
| with integreted calibration balls | Software function |
| for printing thermal labels | |
| Quickly measure, preset, and inspect tools | |
| (length and diameter) | Tool management |
| Easy set up of tool contours | Compass needle |
| Various measuring programs | Pneumatic spindle indexing and brake |
| for easy measurement at the cutting edge of values | Tool location spindle SK50 vacuum |
| such as concentricity and axial runout | |
| Adapter and utensil tray | |
| Fast and simple label printing | (only available with base table ) |
| of measuring results (optional) | |
| Adapters SK, HSK, Capto, VDI and many more | |
| One-handed operation for quick and simultaneous | |
| positioning of the Z and X axis | Label Printer |
| Designation | Measuring range X | Measuring range Z | End gauge |
| BTC I Starter 3235 | 320 mm | 350 mm | 0 mm |
| BTC I Starter 4242 | 420 mm | 420 mm | 100 mm |
| BTC I Starter 4260 | 420 mm | 600 mm | 100 mm |
